Plate cam with mushroom (curved-face) follower (cycloidal rise)

How does a plate cam with a mushroom (curved-face) follower work? · Hardware · basis: Xem Studio design following Brown No. 138 (1868)

Also called: mushroom (curved-face) follower cam, cam and follower, cycloidal cam profile, leva de disco con seguidor de seta, Kurvenscheibe mit Pilzstößel

Exact dimensions. True size, with no tolerance added.

sizes
5 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: base circle; stays the same: rise, pose.
  • Resize: Scale base radius and lift together: the motion law and the pressure angle stay the same. Raising lift alone steepens the pressure angle and the follower can jam.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • A disc cam turning on its shaft lifts a mushroom (curved-face) follower that slides in a straight guide: the profile is drawn from the displacement law — here cycloidal rise of 12 mm over 120°, dwell, return, dwell.
  • Mushroom (curved face, R25): forgives tilt and spreads wear; geometrically a roller of 25 mm radius.
  • Drawn at 60° of cam rotation (mid-rise, lift 6 mm) with the follower touching the profile; follower guide 30 × 16 block. Brown's No. 138.
  • Parts (each has its own page): plate-cam-cycloidal-mushroom-r20-h12, mushroom-follower-r25, follower-guide-block-8.
  • Brown's movement No. 138 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Plate cam with mushroom (curved-face) follower size chart

parametervalue
base circleR20
rise12 mm / 120°
lawcycloidal
followermushroom (curved-face)
pose60°, lift 6 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 138: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
plate-cam-mushroom-follower-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=plate-cam-mushroom-follower-mechanism

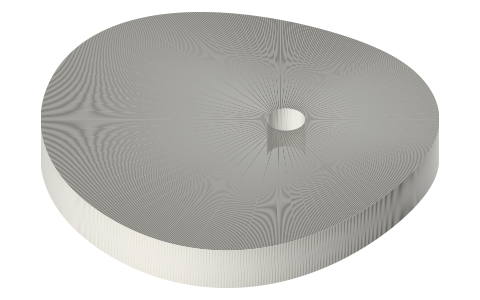

Plate cam with mushroom (curved-face) follower (cycloidal rise), isometric render of a generated part
Render of plate-cam-mushroom-follower-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How does a plate cam with a mushroom (curved-face) follower work?

A disc cam turning on its shaft lifts a mushroom (curved-face) follower that slides in a straight guide: the profile is drawn from the displacement law — here cycloidal rise of 12 mm over 120°, dwell, return, dwell.
