12 mm RC wheel hex

What size is a 12 mm RC wheel hex and which cars use it? · Standard part · basis: Manufacturer specifications (Axial (Horizon Hobby), RC Car Action (Team Associated release))

Also called: 12mm wheel hex, 12mm hex rc, 12 mm hex adapter, 12mm hex wheels, which rc cars use 12mm hex, 12mm hex size, hexágono 12mm rc, 12mm sechskant rc, hex 12mm rueda rc

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

length
12 mm
width
12 mm

Notes

  • A 12 mm wheel hex is the hexagonal drive between axle and wheel; 12 mm is the across-flats size. The file is a 12 mm across-flats hexagon profile.
  • Hex thickness, drive-pin size and bore are not published as a standard and are not modelled.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.

12 mm RC wheel hex size chart

dimensionvalue
Across flats12 mm
Used on (published)Traxxas TRX-4 and TRX-6, Axial SCX10 III and UTB18 Capra, Team Associated Rival MT10

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
hex profile12 mm across flatswheel hex drive of Traxxas TRX-4 and TRX-6, Axial SCX10 III and UTB18 Capra, Team Associated Rival MT10; hex thickness, drive pin and bore not publishedsliderc-wheel-hex-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Axial (Horizon Hobby)SCX10 III Jeep JLU AXI03003webPublisher's page; dimensions are facts
Axial (Horizon Hobby)UTB18 Capra AXI01002V2webPublisher's page; dimensions are facts
RC Car Action (Team Associated release)Rival MT10 Brushless RTR V2webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
rc-wheel-hex-12mm-hex-profileHexagon 12 mm across flats, 1 mm reference thickness (hub length not published)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=rc-wheel-hex-12mm

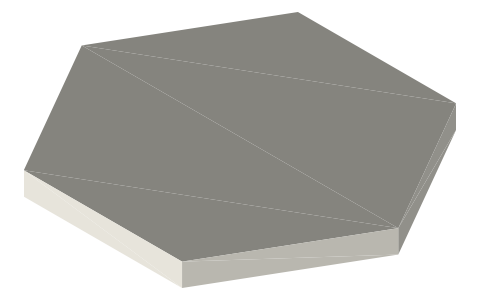

12 mm RC wheel hex, isometric render of a generated part
Render of rc-wheel-hex-12mm-hex-profile from the free STEP; not to scale.

Fits with

Questions

Which RC cars use 12 mm hexes?

Traxxas TRX-4 and TRX-6, Axial SCX10 III and UTB18 Capra, Team Associated Rival MT10.
