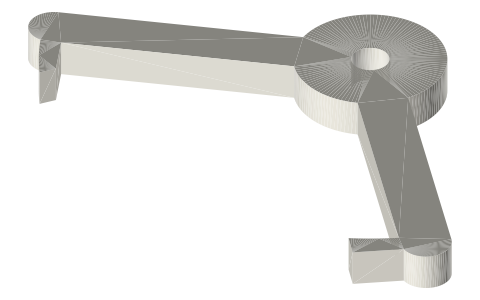

Recoil anchor for the 30-tooth Ø50 escape wheel
What is a recoil anchor? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance
Also called: recoil anchor, clock anchor, escapement pallets, áncora de escape de retroceso, Anker (rückfallend)
Exact dimensions. True size, with no tolerance added.
- length
- 44.96 mm
- width
- 25.47 mm
- height
- 3.0 mm
Notes
- 3 mm anchor pivoting on a Ø3 pin 35.36 mm above the escape wheel's centre, its two pallets spanning 7½ teeth (90°), each pallet 1.6 mm thick with its impulse face at the deep end. The locking faces are straight, their deep ends 0.3 mm off the pivot circle, so the swinging anchor pushes the wheel back a little after locking: the recoil.
- Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).
Recoil anchor for the 30-tooth Ø50 escape wheel size chart
| dimension | value |
|---|---|
| pivot above wheel centre | 35.36 mm |
| span | 7½ teeth (90°) |
| pallet thickness | 1.6 mm |
| pivot hole | Ø3 |
| thickness | 3 mm |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 288: figure, his text and an animation | web | Publisher's page; dimensions are facts |
| Xem Studio | drawing | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=recoil-anchor-for-30t-d50

Fits with
Questions
What is a recoil anchor?
3 mm anchor pivoting on a Ø3 pin 35.36 mm above the escape wheel's centre, its two pallets spanning 7½ teeth (90°), each pallet 1.6 mm thick with its impulse face at the deep end. The locking faces are straight, their deep ends 0.3 mm off the pivot circle, so the swinging anchor pushes the wheel back a little after locking: the recoil.
