RJ45 jack, Amphenol RJHSE-538X (shielded, with LEDs)

What are the dimensions of a PCB RJ45 jack? · Standard part · basis: KiCad 3D model of the Amphenol RJHSE-538X shielded RJ45 jack with LEDs

Also called: rj45 jack dimensions, rj45 pcb jack size, amphenol rjhse538x step, ethernet jack 3d model, rj45 connector stl

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
1 in table

Notes

  • The model's footprint envelope is 16.51 × 16.05 mm; it stands 15.5 mm above the board, with pins 3.18 mm below (18.68 overall).
  • The plug opening is 11.7 × 8 mm.
  • The model comes from the KiCad 3D library (kicad-packages3D), licensed CC BY-SA 4.0 with the KiCad exception, and is rehosted unmodified (STL converted from the STEP) with the library's LICENSE.md and CREDITS.md beside the files; using it in your own design does not make your design share-alike.

RJ45 jack, Amphenol RJHSE-538X size chart

partfootprint (mm)above board (mm)below board (mm)opening (mm)
rj45-amphenol-rjhse538x16.51 × 16.0515.53.1811.7 × 8

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
RJ45 jack (Amphenol RJHSE-538X)envelope 16.51 × 16.05, 15.5 above the board, pins 3.18 below; opening 11.7 × 8RJ45 plug 11.68 × 8.00 × 22.48designedall

Where the files are

Files below are rehosted from this library under its share-alike license, with its license and credits beside them. "verify" = check the license at the link before commercial use.

KiCadkicad-packages3D library (origin of these files)STEP, WRLCC BY-SA 4.0 with KiCad exception

Free files

★ Free files 1 parts. From the KiCad library contributors, rehosted with their license and credits. CC BY-SA 4.0 (KiCad library license, with the KiCad exception). index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
rj45-amphenol-rjhse538xKiCad Connector_USB: RJ45_Amphenol_RJHSE538X; bbox 18.7 × 16.5 × 16.1 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=rj45-jack

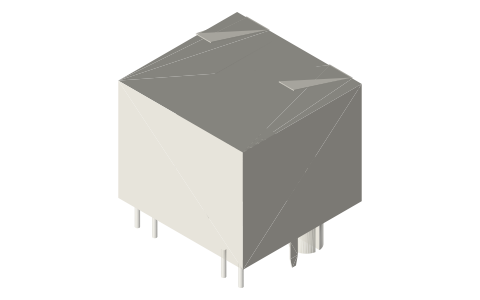

RJ45 jack, Amphenol RJHSE-538X (shielded, with LEDs), isometric render of a generated part
Render of rj45-amphenol-rjhse538x from the free STEP; not to scale.

You might also need

Questions

What are RJ45 jack dimensions?

The Amphenol RJHSE-538X model is 16.51 × 16.05 mm on the board and 15.5 mm tall, with an 11.7 × 8 mm opening.

How far do RJ45 pins go below the board?

3.18 mm on this model.
