Rocking segment lever, R50 rim × 16, Ø8 pivot, 100 mm handle

What is a rocking segment? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: segment lever, rocking sector, quadrant lever, palanca de segmento, Segmenthebel

Exact dimensions. True size, with no tolerance added.

length
100.0 mm
width
110.0 mm
height
23.0 mm

Notes

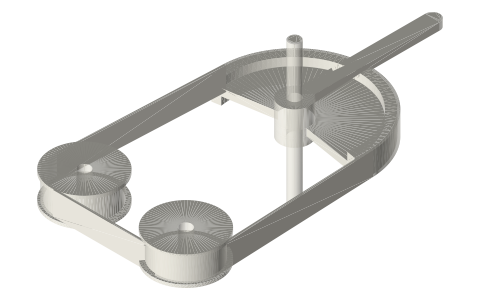

  • A lever whose end is a circular segment of 50 mm radius (198.83° of rim, 16 mm wide for a 16 mm band) on a Ø8 pivot, with a 10 × 5 handle 100 mm long on a Ø20 boss, above the band's plane: a band fixed to the two ends of the rim and run round pulleys below turns them as the lever rocks.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Rocking segment lever, R50 rim × 16, Ø8 pivot, 100 mm handle size chart

dimensionvalue
rim radius50 mm
rim arc198.83°
rim width16 mm
pivotØ8, Ø20 boss
handle10 × 5 × 100 mm, z 20..25

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 6: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
rocking-segment-lever-r50segment, pivot on the Z axis, rim on +Y, z 2..18STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=rocking-segment-lever-r50

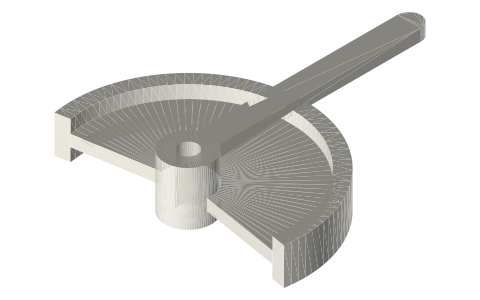

Rocking segment lever, R50 rim × 16, Ø8 pivot, 100 mm handle, isometric render of a generated part
Render of rocking-segment-lever-r50 from the free STEP; not to scale.

Fits with

Questions

What is a rocking segment?

A lever whose end is a circular segment of 50 mm radius (198.83° of rim, 16 mm wide for a 16 mm band) on a Ø8 pivot, with a 10 × 5 handle 100 mm long on a Ø20 boss, above the band's plane: a band fixed to the two ends of the rim and run round pulleys below turns them as the lever rocks.
