Rod clevis for a Ø2 rod, pin 51.5 up

What clevis joins a 2 mm rod to a con-rod? · Hardware · basis: My geometry: a Ø2 socket for the rod and the same 12 × 12 fork as the plunger clevis

Also called: displacer rod connector, 2mm rod clevis

Long Earth Society build part. Rod end of the mug LTD. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • Ø8 shank with a Ø2 × 10 socket from the bottom (the rod presses in), fork with a 5 mm slot and a Ø3 pin hole 51.5 above the bottom; on the mug LTD it carries rod-2x100's top to the height of the plunger clevis's pin, so both con-rods are 45 long.

Rod clevis for a Ø2 rod, pin 51.5 up size chart

featuresize (mm)
rod socketØ2 × 10
pin height51.5
fork12 × 12, slot 5

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
rod socketØ2 × 10Ø2 displacer rodpressall
fork slot55 mm con-rodrunall
pin holeØ3dowel-3x12pressall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
rod-clevis-2mm-p51displacer-rod clevis: Ø8 shank with a Ø2 × 10 socket for the 2 mm rod, 12 × 12 fork (5 mm slot) with a Ø3 pin hole 51.5 above its bottomSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=rod-clevis-2mm

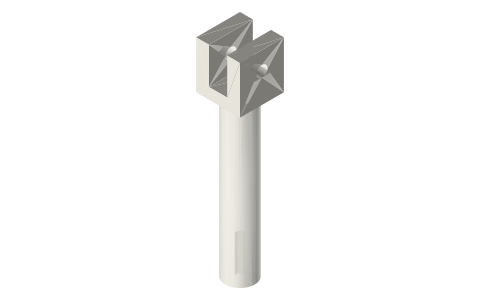

Rod clevis for a Ø2 rod, pin 51.5 up, isometric render of a generated part
Render of rod-clevis-2mm-p51 from the free STEP; not to scale.

Fits with

Questions

What joins the displacer rod to the con-rod on the mug LTD?

This clevis: rod in its Ø2 socket, con-rod on a dowel-3x12 through its fork.
