Roller-follower fork rod, 8 × 6 mm, for a Ø10 roller on a Ø3 pin

What is a roller follower rod? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: roller follower rod, cam follower fork, vástago con rodillo, Rollenstößel

Exact dimensions. True size, with no tolerance added.

length
14.0 mm
width
75.0 mm
height
10.0 mm

Notes

  • 8 × 10 mm rod ending in a clevis: two 2 mm cheeks, 6 mm apart (the cam's thickness), pass above and below the cam and carry a Ø3 pin on which the Ø10 × 4 roller turns in the cam's plane.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Roller-follower fork rod, 8 × 6 mm, for a Ø10 roller on a Ø3 pin size chart

dimensionvalue
rod8 × 10 mm, 60 long
cheeks2 mm, 6 mm apart
rollerØ10 × 4 (roller-follower-10)
pinØ3

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 138: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
roller-follower-fork-rod-8fork rod, roller centre at y = 0STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=roller-follower-fork-rod-8

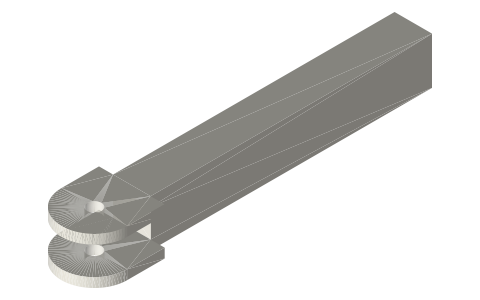

Roller-follower fork rod, 8 × 6 mm, for a Ø10 roller on a Ø3 pin, isometric render of a generated part
Render of roller-follower-fork-rod-8 from the free STEP; not to scale.

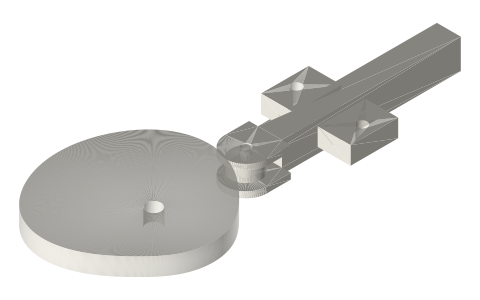

Fits with

Questions

What is a roller follower rod?

8 × 10 mm rod ending in a clevis: two 2 mm cheeks, 6 mm apart (the cam's thickness), pass above and below the cam and carry a Ø3 pin on which the Ø10 × 4 roller turns in the cam's plane.
