Round-belt generator drive: Ø84 crank pulley, 2208 generator pulley, Ø5 belts

How do I drive a small generator with a round belt? · Hardware · basis: Design values; 2208 rotor-top hole pattern from the gimbal-motor envelope on this site

Also called: round belt pulley, stirling generator belt drive

Long Earth Society build part. The generator drive of my desk-style engines. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
4 in table

Notes

  • A Ø5 round belt from an Ø84 crank pulley (pitch Ø80) to an Ø16 pulley (pitch Ø13.33) bolted to a 2208 gimbal motor's rotor top: 6 : 1, so 600 rpm at the crank is 3600 rpm at the generator.
  • Belt lengths on the centre line: 339.1 mm at 90 centres (horizontal gamma), 415.2 mm at 130 (walking-beam gamma). Round belts are cut to length and joined; tension by stretch.
  • The belt and pulleys turn the crank's shaft power into motor speed; the electrical output on each engine's page comes from the motor's published KV and resistance.

Round-belt generator drive: Ø84 crank pulley, 2208 generator pulley… size chart

partsize
crank-pulley-84-b8Ø84 × 6, pitch Ø80, hub Ø20
generator-pulley-2208-pd13.33Ø16 × 8, pitch Ø13.33
round-belt-5-c90Ø5 × 339.1
round-belt-5-c130Ø5 × 415.2

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
crank pulley boreØ8Ø8 crank shaft (M4 grub)slidecrank-pulley*
groovesØ5 round, pitch Ø80 / Ø13.33Ø5 round beltdesignedall
pulley flange holes4 × Ø2.4 on 12 × 12M2 screws into the 2208 rotor topdesignedgenerator-pulley*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 4 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
crank-pulley-84-b8crank pulley Ø84 × 6 with a Ø5 round-belt groove on pitch Ø80, hub Ø20 × 19.5, Ø8 bore, M4 tapped hub holeSTEP · STL
generator-pulley-2208-pd13.33generator pulley for a 2208 rotor top: flange Ø24 × 3 with 4 × Ø2.4 (12 × 12), neck Ø8, pulley Ø16 × 8 with a Ø5 groove on pitch Ø13.33STEP · STL
round-belt-5-c90Ø5 round belt on pitch circles Ø80 and Ø13.33 at 90 centres: 339.1 mm long on its centre lineSTEP · STL
round-belt-5-c130Ø5 round belt on pitch circles Ø80 and Ø13.33 at 130 centres: 415.2 mm long on its centre lineSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=round-belt-generator-drive

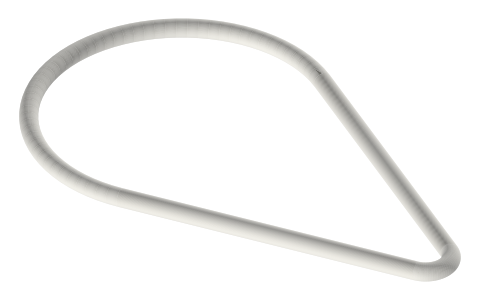

Round-belt generator drive: Ø84 crank pulley, 2208 generator pulley, Ø5 belts, isometric render of a generated part
Render of round-belt-5-c90 from the free STEP; not to scale.

Fits with

Questions

What ratio?

6 : 1: the 2208's KV 128 then gives about 28 V open circuit at 600 rpm at the crank.
