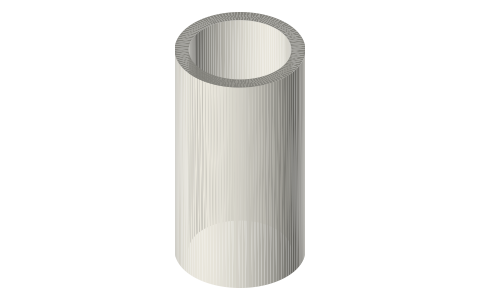

Schedule 40 pipe and PVC fittings, 1/2 to 2 inch
What is the actual outside diameter of 1/2, 3/4 and 1 inch Schedule 40 pipe? · Hardware · basis: ASME B36.10 / ASTM D1785; nominal pipe size (NPS)
Also called: pvc pipe, sch 40, nps, pipe od, 1/2 inch pipe, schedule 40 pipe dimensions chart, schedule 40 pvc od, tubo cédula 40 medidas, tubo schedule 40 dimensões
Long Earth Society build part. Stands and manifolds. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 6 in table
Notes
- Nominal size is not the OD. Fittings grip the OD listed below; an adapter that goes over the pipe has its bore drawn at the pipe OD, and one that goes into a fitting socket has its spigot drawn at the same OD.
- Wall thickness is Schedule 40 PVC; steel Sch 40 shares the OD.
Schedule 40 pipe and PVC fittings, 1/2 to 2 inch size chart
| nps | od (mm) | od (in) | wall (mm) | id (mm) |
|---|---|---|---|---|
| 1/2 | 21.34 | 0.84 | 2.77 | 15.8 |
| 3/4 | 26.67 | 1.05 | 2.87 | 20.9 |
| 1 | 33.4 | 1.315 | 3.38 | 26.6 |
| 1-1/4 | 42.16 | 1.66 | 3.56 | 35.1 |
| 1-1/2 | 48.26 | 1.9 | 3.68 | 40.9 |
| 2 | 60.33 | 2.375 | 3.91 | 52.5 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| pipe OD | 21.34 / 26.67 / 33.40 / 42.16 / 48.26 / 60.33 | fitting socket or adapter bore | socket | all |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| McMaster-Carr | Pipe fittings and pipe (free STEP/IGES/STL per part, for your own design use; no redistribution) | STEP, IGES, STL, PDF | McMaster-Carr site terms: personal design use, no redistribution verify |
| Wikipedia | Nominal Pipe Size | web | CC BY-SA 4.0 (text) |
Free files
★ Free files 6 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| pipe-sch40-1-2in-50mm | NPS 1/2 Sch 40: OD 21.34 × 2.77 wall, 50 mm stub | STEP · STL |
| pipe-sch40-3-4in-50mm | NPS 3/4 Sch 40: OD 26.67 × 2.87 wall, 50 mm stub | STEP · STL |
| pipe-sch40-1in-50mm | NPS 1 Sch 40: OD 33.4 × 3.38 wall, 50 mm stub | STEP · STL |
| pipe-sch40-1-1-4in-50mm | NPS 1-1/4 Sch 40: OD 42.16 × 3.56 wall, 50 mm stub | STEP · STL |
| pipe-sch40-1-1-2in-50mm | NPS 1-1/2 Sch 40: OD 48.26 × 3.68 wall, 50 mm stub | STEP · STL |
| pipe-sch40-2in-50mm | NPS 2 Sch 40: OD 60.33 × 3.91 wall, 50 mm stub | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=schedule-40-pipe

Fits with
Questions
What is the outside diameter of 1/2 inch PVC pipe?
21.34 mm (0.840 in). Nominal size is not the OD. 3/4 in is 26.67 mm, 1 in is 33.4 mm, 1-1/2 in is 48.26 mm, 2 in is 60.33 mm.
What size should a 3D printed adapter be to fit over 3/4 inch PVC?
Bore drawn at 26.67 mm, the pipe OD; apply your slide allowance to it. A part that goes into a fitting socket has its spigot drawn at the same 26.67.
What is the inside diameter of Schedule 40 PVC?
1/2 in 15.8 mm, 3/4 in 20.9 mm, 1 in 26.6 mm, 1-1/4 in 35.1 mm, 1-1/2 in 40.9 mm, 2 in 52.5 mm (wall 2.77–3.91 mm).
