Screw-press C-frame with a Tr16×4 nut boss, 70 × 60 foot

What is a screw press frame? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: screw press frame, fly press frame, c frame press, bastidor de prensa de husillo, Spindelpressenrahmen

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

length
70.0 mm
width
60.0 mm
height
110.0 mm

Notes

  • C-frame: 70 × 60 × 10 foot with four Ø5.5 holes, 20 × 30 back pillar 110 high and a 50 × 30 × 30 top arm carrying a Ø36 × 30 boss with a Tr16×4 internal thread (the exact complement of the jack screw's basic profile); 30 mm throat between the nut and the foot.
  • Nut height 30 mm = 7.5 threads engaged.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Screw-press C-frame with a Tr16×4 nut boss, 70 × 60 foot size chart

dimensionvalue
foot70 × 60 × 10, 4 × Ø5.5
pillar20 × 30 × 110
nut bossØ36 × 30, Tr16×4
throat (nut to foot)70 mm

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
nut bossØ36 × 30, Tr16×4 internal (7.5 threads engaged)Tr16×4 jack screwrunscrew-press-c-frame*
foot holes4 × Ø5.5 in a 70 × 60 × 10 footM5 screws (ISO 273 medium clearance)designedscrew-press-c-frame*
throat70 from nut to footwork space under the screwdesignedscrew-press-c-frame*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 105: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
screw-press-c-frame-tr16x4frame, screw axis Z, nut z 40..70, foot top at z −30STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=screw-press-c-frame-tr16x4

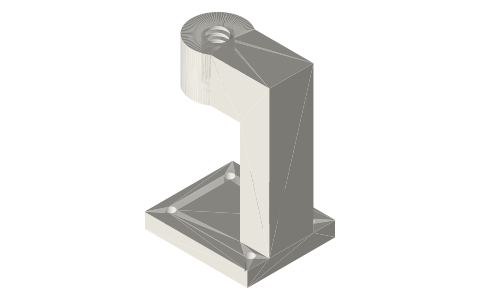

Screw-press C-frame with a Tr16×4 nut boss, 70 × 60 foot, isometric render of a generated part
Render of screw-press-c-frame-tr16x4 from the free STEP; not to scale.

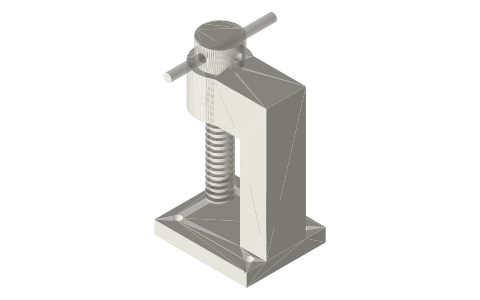

Fits with

Questions

What is a screw press frame?

C-frame: 70 × 60 × 10 foot with four Ø5.5 holes, 20 × 30 back pillar 110 high and a 50 × 30 × 30 top arm carrying a Ø36 × 30 boss with a Tr16×4 internal thread (the exact complement of the jack screw's basic profile); 30 mm throat between the nut and the foot.
