Slotted lever (quick-return lever), 140 mm

What is a slotted lever? · Modern device · basis: Xem Studio drawing

Also called: slotted lever, quick return lever

Exact dimensions. True size, with no tolerance added.

sizes
3 in table

Notes

  • A 140 mm lever with a 100 × 6.4 mm slot: a crank pin in a sliding block runs in the slot, the lever pivots on the Ø3.2 hole at its end.

Slotted lever (quick-return lever), 140 mm size chart

dimensionvalue
length140 mm
slot100 × 6.4 mm
pivotØ3.2

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
slotted-lever-140140 mm slotted lever, 5 mm thickSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=slotted-lever-140

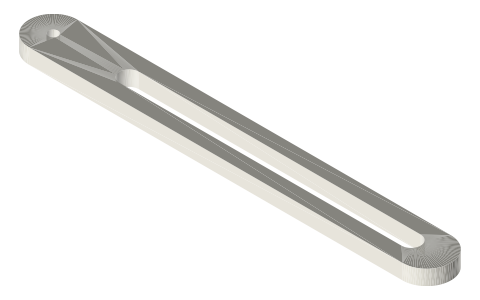

Slotted lever (quick-return lever), 140 mm, isometric render of a generated part
Render of slotted-lever-140 from the free STEP; not to scale.

Fits with

Questions

What is a slotted lever?

A 140 mm lever with a 100 × 6.4 mm slot: a crank pin in a sliding block runs in the slot, the lever pivots on the Ø3.2 hole at its end.
