Spur gear pair, module 1, 20 : 40 teeth (2 : 1)

How do two spur gears change speed and direction? · Hardware · basis: Xem Studio design following Brown No. 24 (1868)

Also called: spur gears, gear pair, gear ratio 2:1, spur gear mesh, par de engranajes rectos, Stirnradpaar

Exact dimensions. True size, with no tolerance added.

sizes
5 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: centre distance, face width; stays the same: ratio; step to the nearest standard size (and redraw the hole or pocket it fits): module.
  • Resize: Gears scale by the module m (pitch Ø = m·z, centre distance = m·(z₁ + z₂)/2): keep the tooth counts so the ratio stays, and choose a standard module (0.5, 0.8, 1, 1.25, 1.5, 2, 2.5, 3).
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • Two involute spur gears on parallel shafts: the speed ratio is the inverse tooth ratio (20 : 40 → output at half speed, double torque) and the shafts turn in opposite directions.
  • Module 1, 20° pressure angle, centre distance m(N₁ + N₂)/2 = 30 mm exactly; teeth meet on the pitch line with no backlash drawn.
  • Brown's figure 24 is the plain spur pair, the base of every gear train in the book.
  • Parts (each has its own page): spur-gears-module-1.
  • Brown's movement No. 24 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Spur gear pair, module 1, 20 : 40 teeth size chart

parametervalue
module1
teeth20 / 40
ratio2 : 1
centre distance30 mm
face width8 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 24: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
spur-gear-pair-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=spur-gear-pair-mechanism

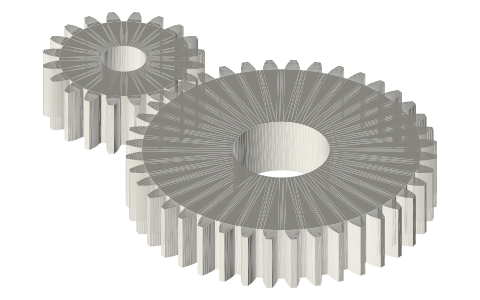

Spur gear pair, module 1, 20 : 40 teeth (2 : 1), isometric render of a generated part
