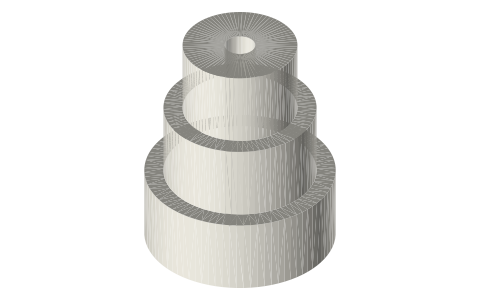

Stepped (speed-cone) pulley Ø50 / Ø40 / Ø30 × 20 mm steps, Ø8 bore
What is a stepped cone pulley? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance
Also called: cone pulley, step pulley, speed cone, lathe step pulley, polea escalonada (cono de poleas), Stufenscheibe
Exact dimensions. True size, with no tolerance added.
- length
- 50.0 mm
- width
- 50.0 mm
- height
- 60.0 mm
Notes

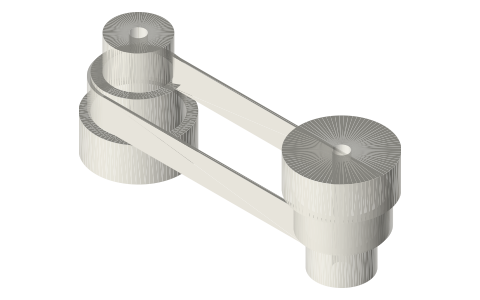

- Three flat-belt steps Ø50, Ø40 and Ø30, each 20 mm wide (60 mm total), Ø8 bore. Two identical cones mounted the opposite way round keep the same belt length on each step pair (the diameters sum to 80 every time).
- Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).
Stepped (speed-cone) pulley Ø50 / Ø40 / Ø30 × 20 mm steps, Ø8 bore size chart
| dimension | value |
|---|---|
| steps | Ø50 / Ø40 / Ø30 |
| step width | 20 mm |
| bore | Ø8 |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 8: figure, his text and an animation | web | Publisher's page; dimensions are facts |
| Xem Studio | drawing | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=stepped-cone-pulley-50-40-30

Fits with
Questions
What is a stepped cone pulley?
Three flat-belt steps Ø50, Ø40 and Ø30, each 20 mm wide (60 mm total), Ø8 bore. Two identical cones mounted the opposite way round keep the same belt length on each step pair (the diameters sum to 80 every time).
