Stepped (staggered) spur gearing, 20 : 40, two steps

What is stepped gearing? · Hardware · basis: Xem Studio design following Brown No. 44 (1868)

Also called: stepped gear, staggered gear, step gearing, hooke gear, engranaje escalonado, Stufenzahnrad

Exact dimensions. True size, with no tolerance added.

sizes
5 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: centre distance, face; stays the same: layer offset; step to the nearest standard size (and redraw the hole or pocket it fits): module.
  • Resize: Gears scale by the module m (pitch Ø = m·z, centre distance = m·(z₁ + z₂)/2): keep the tooth counts so the ratio stays, and choose a standard module (0.5, 0.8, 1, 1.25, 1.5, 2, 2.5, 3).
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • Each wheel is two identical spur gears side by side, the second turned by half a tooth pitch: the steps share the load so that one pair is always near the pitch point, giving smoother, stronger drive — the step towards helical gears.
  • Built here from four catalog module 1 gears (20 and 40 teeth), the upper layer turned 9° (pinion) and 4.5° (wheel); centre distance 30 mm, no backlash drawn.
  • Brown's No. 44 notes its use for heavy, slow drives such as large planing-machine beds.
  • Parts (each has its own page): spur-gears-module-1.
  • Brown's movement No. 44 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Stepped (staggered) spur gearing, 20 : 40, two steps size chart

parametervalue
module1
teeth20 / 40, two layers each
layer offsethalf a pitch (9° / 4.5°)
centre distance30 mm
face2 × 8 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 44: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
stepped-gearing-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=stepped-gearing-mechanism

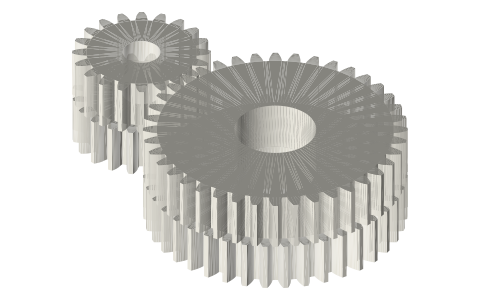

Stepped (staggered) spur gearing, 20 : 40, two steps, isometric render of a generated part
Render of stepped-gearing-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

What is stepped gearing?

Each wheel is two identical spur gears side by side, the second turned by half a tooth pitch: the steps share the load so that one pair is always near the pitch point, giving smoother, stronger drive — the step towards helical gears.
