Stopped dado joint (blind housing)
What is a stopped dado? · Hardware · basis: Xem Studio design — geometry computed in the generator from traditional proportions
Also called: stopped dado, blind dado, stopped housing joint, blind housing, ranura ciega, verdeckte Nut, abgesetzte Gratnut
Exact dimensions. True size, with no tolerance added.
- length
- 90.0 mm
- width
- 80.0 mm
- height
- 100.0 mm
Notes
- Woodworking joint drawn for 3D printing: the parts lock together by shape, so a print can be joined without glue or screws. Drawn at true size with the parts line to line (zero gap) in their assembled position — add your printer's fit allowance to the mating faces (your AI or slicer can do this).

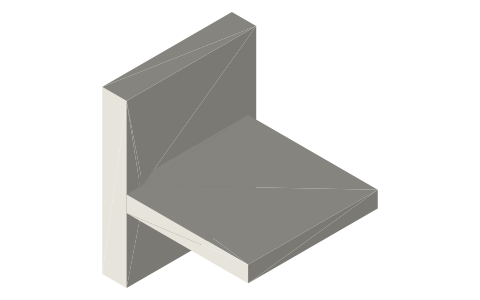

- A dado that stops short of the front edge, so the joint is hidden from the front; the shelf is notched to suit.
Stopped dado joint size chart
| dimension | value |
|---|---|
| stock | 15 mm side, 10 mm shelf, 80 mm deep |
| parts | side panel, shelf |
| dado | 10 × 5 mm, stopped 10 mm from the front |
| shelf notch | 5 × 10 mm at the front corner |
| assembles | the shelf slides in from the back |
| holds | shelf loads; the front edge shows no groove |
