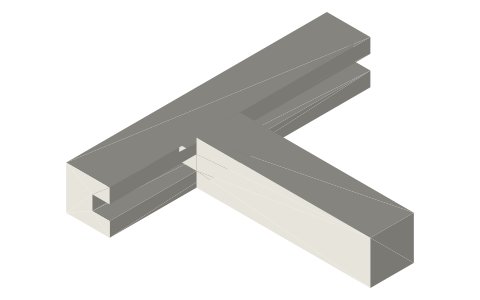

Stub tenon joint (frame and panel)
What is a stub tenon? · Hardware · basis: Xem Studio design — geometry computed in the generator from traditional proportions
Also called: stub tenon, stub tenon and groove, frame and panel joint, cabinet door joint, espiga corta, Stummelzapfen, Rahmenverbindung
Exact dimensions. True size, with no tolerance added.
- length
- 100.0 mm
- width
- 120.0 mm
- height
- 20.0 mm
Notes
- Woodworking joint drawn for 3D printing: the parts lock together by shape, so a print can be joined without glue or screws. Drawn at true size with the parts line to line (zero gap) in their assembled position — add your printer's fit allowance to the mating faces (your AI or slicer can do this).
- A short tenon that sits in the panel groove — the quick frame-and-panel joint.
Stub tenon joint size chart
| dimension | value |
|---|---|
| stock | 20 × 20 mm square |
| parts | stile, rail |
| groove | 6.67 mm wide, 8 mm deep |
| stub tenon | 8 mm long, as thick as the groove |
| assembles | tenon into the groove |
| holds | light frames: cabinet doors, panels; glue or pin it |
