Sun-and-planet rod, 100 mm, with Ø10 × 13 planet boss

What is the planet rod? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: sun and planet rod, planet connecting rod, biela de sol y planeta, Pleuel für Sonnen-und-Planetengetriebe

Exact dimensions. True size, with no tolerance added.

length
118.0 mm
width
18.0 mm
height
18.0 mm

Notes

  • 18 × 5 mm rod, 100 mm between the planet boss and a Ø3 pin hole: the planet gear is fixed on the Ø10 × 13 boss (it does not turn on the rod), the arm turns on the boss above the gear. Rocking the far end drives the sun round.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Sun-and-planet rod, 100 mm, with Ø10 × 13 planet boss size chart

dimensionvalue
length (centres)100 mm
bossØ10 × 13 mm
end holeØ3

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 39: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
sun-and-planet-rod-100rod: bar z −5..0, boss z 0..13STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=sun-and-planet-rod-100

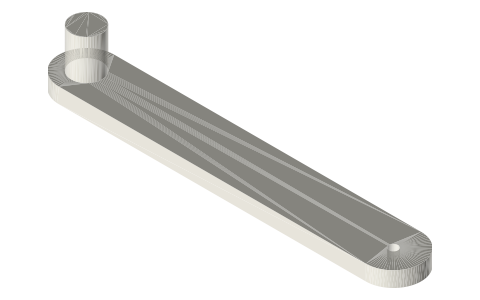

Sun-and-planet rod, 100 mm, with Ø10 × 13 planet boss, isometric render of a generated part
Render of sun-and-planet-rod-100 from the free STEP; not to scale.

Fits with

Questions

What is the planet rod?

18 × 5 mm rod, 100 mm between the planet boss and a Ø3 pin hole: the planet gear is fixed on the Ø10 × 13 boss (it does not turn on the rod), the arm turns on the boss above the gear. Rocking the far end drives the sun round.
