Swash plate follower 8 × 8 × 30 with Ø8 ball end

What follower rides on a swash plate? · Hardware · basis: 8 mm square pushrod 30 long with an Ø8 ball on one end and a Ø3 × 10 hole in the other

Also called: swash plate follower, ball end pushrod, wobble plate follower

Long Earth Society build part. Multi-cylinder drive from one shaft, used on the LES rigs. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
4 in table

Notes

  • An 8 × 8 square pushrod 30 long; an Ø8 ball centred on one end face bears on the swash plate, making it 34 overall.
  • The other end has an axial Ø3 hole 10 deep for a Ø3 pin to the piston or link.
  • It runs in a square 8 × 8 guide so it slides without turning.

Swash plate follower 8 × 8 × 30 with Ø8 ball end size chart

featurevalue (mm)
section8 × 8
length30 (34 with ball)
ballØ8
tail holeØ3 × 10

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
follower tail holeØ3Ø3 pinrunswash-follower-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaSwashplatewebCC BY-SA 4.0 (text)
Long Earth SocietyEngine and rig builds on extrusion framesweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
swash-follower-8x30swash follower: 8 mm square pushrod with a Ø8 ball end, Ø3 tail holeSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=swash-follower

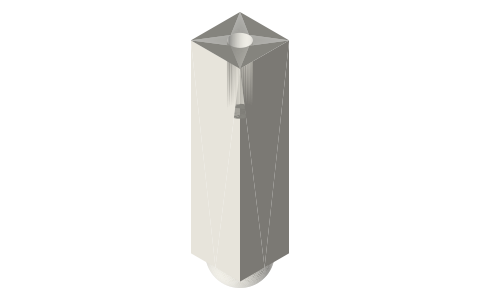

Swash plate follower 8 × 8 × 30 with Ø8 ball end, isometric render of a generated part
Render of swash-follower-8x30 from the free STEP; not to scale.

You might also need

Questions

What size is the swash follower?

8 × 8 × 30 with an Ø8 ball end, 34 overall, Ø3 × 10 tail hole.

What connects to the follower tail?

A Ø3 pin in the Ø3 × 10 hole.
