T8 flange nut: Ø10.2 body, Ø22 flange, 4 × Ø3.5 on 16
What are the T8 lead screw nut flange dimensions? · Hardware · basis: Common catalogue T8 flange nut: Ø10.2 × 15 body, Ø22 × 3.5 flange, four Ø3.5 holes on a Ø16 circle
Also called: t8 nut dimensions, t8 nut hole pattern, leadscrew nut flange, t8 nut step file
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 4 in table
Notes

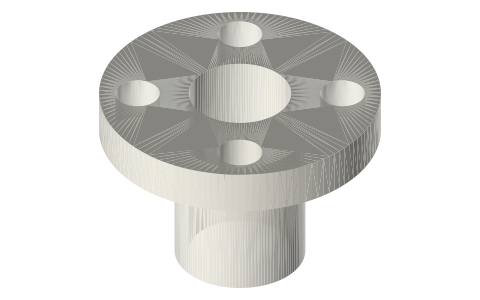

- A Ø10.2 body 15 long with a Ø22 × 3.5 flange at one end (flange face flush with the body end).
- Four Ø3.5 holes (M3) on a Ø16 pitch circle, at 45° to the axes.
- Bore drawn at Ø8 (thread not drawn). A mount takes the body at Ø10.2 and the flange at Ø22 (see Mating features).
T8 flange nut: Ø10.2 body, Ø22 flange, 4 × Ø3.5 on 16 size chart
| feature | value (mm) |
|---|---|
| body | Ø10.2 × 15 |
| flange | Ø22 × 3.5 |
| holes | 4 × Ø3.5 on Ø16, 45° |
| bore | Ø8 (Tr8×8) |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| nut body | Ø10.2 | mount bore | slide | t8-flange-nut* |
| nut flange holes | 4 × Ø3.5 on 16 PCD | M3 screws | designed | t8-flange-nut* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Wikipedia | Leadscrew | web | CC BY-SA 4.0 (text) |
| McMaster-Carr | Lead screws and nuts (free STEP/IGES/STL per part, for your own design use; no redistribution) | STEP, IGES, STL, PDF | McMaster-Carr site terms: personal design use, no redistribution verify |
Free files
★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=t8-nut

How it fits
Connects to
Also needed
You might also need
Questions
What is the T8 nut hole pattern?
Four Ø3.5 holes (M3) on a Ø16 pitch circle at 45° to the axes; flange Ø22 × 3.5.
What bore does a T8 nut mount need?
Ø10.2 for the body, with the Ø22 flange on the face.
