Lower block for a pitch-Ø20 sheave with a standing-end arm (tackle rove to advantage)

What is the lower block for a pitch-ø20 sheave with a standing-end arm (tackle rove to advantage)? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: pulley block, tackle block, motón, Flasche (Rollenblock)

Exact dimensions. True size, with no tolerance added.

length
68.7 mm
width
13.0 mm
height
43.2 mm

Notes

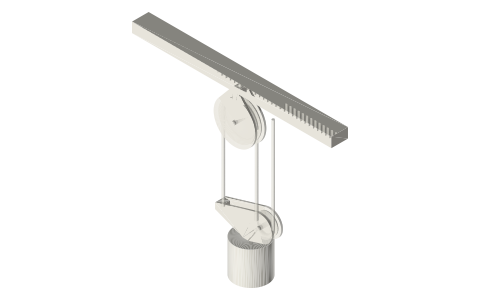

  • Block frame: two 2 mm cheeks either side of the sheave (Ø4 pin holes), joined by bridges that carry Ø3 stems (into the beam, the floor plate or a weight's socket) and Ø3 rope-end sockets; every bridge sits clear of the rope's path. The arm carries the rope's standing end 50 mm to the side, so the hauling part can come off the moving block.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Lower block for a pitch-Ø20 sheave with a standing-end arm size chart

dimensionvalue
sheavespitch Ø20 at (0, 0)
cheeks2 mm, 9 mm apart (8 mm sheaves)
pinsØ4
stemsØ3 × 8 at x = -16.67 down
rope socketsØ3 × 5 at x = -50

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 12: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
tackle-block-10-advantageframe, sheave plane y = 0, coordinates as in the mechanismSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tackle-block-10-advantage

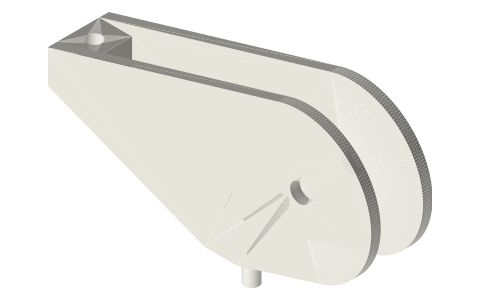

Lower block for a pitch-Ø20 sheave with a standing-end arm (tackle rove to advantage), isometric render of a generated part
Render of tackle-block-10-advantage from the free STEP; not to scale.

Fits with

Questions

What is the lower block for a pitch-ø20 sheave with a standing-end arm (tackle rove to advantage)?

Block frame: two 2 mm cheeks either side of the sheave (Ø4 pin holes), joined by bridges that carry Ø3 stems (into the beam, the floor plate or a weight's socket) and Ø3 rope-end sockets; every bridge sits clear of the rope's path. The arm carries the rope's standing end 50 mm to the side, so the hauling part can come off the moving block.
