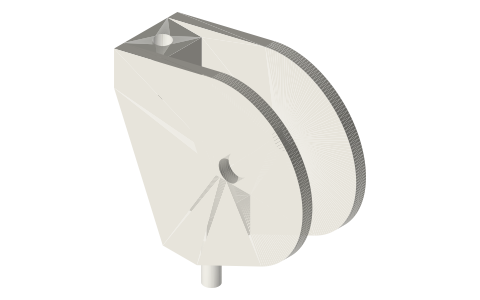

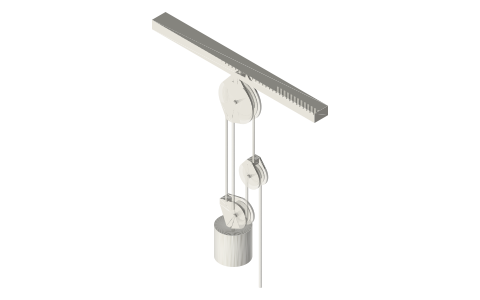

Load block for a pitch-Ø20 sheave with a side rope socket and a weight stem
What is the load block for a pitch-ø20 sheave with a side rope socket and a weight stem? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance
Also called: pulley block, tackle block, motón, Flasche (Rollenblock)
Exact dimensions. True size, with no tolerance added.
- length
- 38.7 mm
- width
- 13.0 mm
- height
- 43.2 mm
Notes
- Block frame: two 2 mm cheeks either side of the sheave (Ø4 pin holes), joined by bridges that carry Ø3 stems (into the beam, the floor plate or a weight's socket) and Ø3 rope-end sockets; every bridge sits clear of the rope's path. One rope runs under the sheave; a second rope's end plugs into the side socket; the stem below (at the line of the resultant pull) carries the weight.
- Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).
Load block for a pitch-Ø20 sheave with a side rope socket and a… size chart
| dimension | value |
|---|---|
| sheaves | pitch Ø20 at (0, 0) |
| cheeks | 2 mm, 9 mm apart (8 mm sheaves) |
| pins | Ø4 |
| stems | Ø3 × 8 at x = -10 down |
| rope sockets | Ø3 × 5 at x = -20 |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 12: figure, his text and an animation | web | Publisher's page; dimensions are facts |
| Xem Studio | drawing | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=tackle-block-10-load-hook

Fits with
Questions
What is the load block for a pitch-ø20 sheave with a side rope socket and a weight stem?
Block frame: two 2 mm cheeks either side of the sheave (Ø4 pin holes), joined by bridges that carry Ø3 stems (into the beam, the floor plate or a weight's socket) and Ø3 rope-end sockets; every bridge sits clear of the rope's path. One rope runs under the sheave; a second rope's end plugs into the side socket; the stem below (at the line of the resultant pull) carries the weight.
