TBS Source One V5 7-inch DeadCat frame

What are the dimensions of the TBS Source One V5 7-inch DeadCat frame? · Modern device · basis: Secondary source: MyFPVStore (copy of the maker's figures; the maker publishes none directly)

Also called: Source One V5 7 inch dimensions, Source One 7 deadcat wheelbase, TBS Source One 7 inch frame size, Source One V5 7 arm thickness, 7 inch long range frame 320mm, dimensiones Source One 7 pulgadas, TBS Source One 7 Zoll Abmessungen, Source One 7 DC stack size

Exact dimensions. True size, with no tolerance added.

length
30.5 mm
width
30.5 mm

Notes

  • Long-range 7 in DeadCat version of the Source One V5, as listed by MyFPVStore.
  • The listing's 7 × 4.5 × 2 in figure is a shipping size and is not used.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

TBS Source One V5 7-inch DeadCat frame size chart

dimensionvalue
Wheelbase320 mm
Arm thickness6 mm
Top plate2 mm
Bottom plate2.5 mm
Stack mounting30.5 × 30.5 mm and 20 × 20 mm
Weightapprox. 145 g

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

MyFPVStoreTBS Source One V5 7 inch DeadCat FramewebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
tbs-source-one-v5-7-inch-deadcat-stack-hole-patternStack holes on 30.5 × 30.5 (M3) and 20 × 20 mm (M2) squares — template disc, plate outline not publishedSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tbs-source-one-v5-7-inch-deadcat

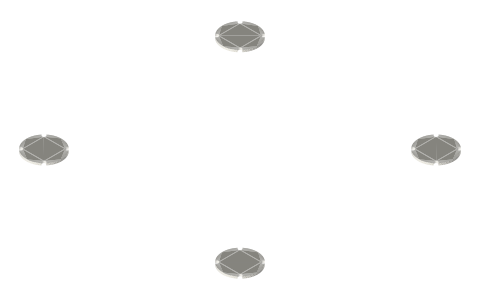

TBS Source One V5 7-inch DeadCat frame, isometric render of a generated part
Render of tbs-source-one-v5-7-inch-deadcat-stack-hole-pattern from the free STEP; not to scale.

Fits with

Questions

What is the Source One V5 7 in wheelbase?

320 mm, with 6 mm arms and 30.5/20 mm stack mounting.
