Tightener slide 60 × 20 × 10 with Ø8 stub axle, two Ø6 rod bores and a pin tab

What does the tightener slide do? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: tension slide, belt tensioner slide, carro tensor, Spannschlitten

Exact dimensions. True size, with no tolerance added.

length
60.0 mm
width
46.0 mm
height
31.0 mm

Notes

  • Block that slides on two Ø6 rods (bores along its length, 44 mm apart) and carries a pulley on a Ø8 × 21 stub axle; a tab below has a Ø3 hole 30 mm from the axle for the hanging weight's pin.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Tightener slide 60 × 20 × 10 with Ø8 stub axle, two Ø6 rod bores and… size chart

dimensionvalue
block60 × 20 × 10 mm
stub axleØ8 × 21
rod bores2 × Ø6, 44 mm apart
weight pinØ3, 30 mm below the axle

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 23: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
tightener-slide-8mm-stubslide, axle on Z at the origin, rods along YSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tightener-slide-8mm-stub

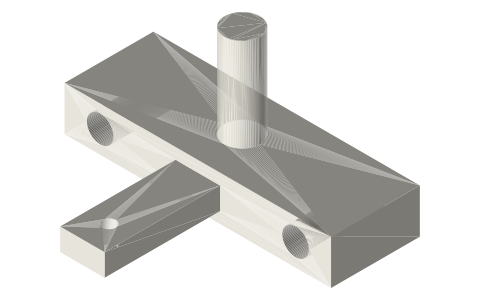

Tightener slide 60 × 20 × 10 with Ø8 stub axle, two Ø6 rod bores and a pin tab, isometric render of a generated part
Render of tightener-slide-8mm-stub from the free STEP; not to scale.

Fits with

Questions

What does the tightener slide do?

Block that slides on two Ø6 rods (bores along its length, 44 mm apart) and carries a pulley on a Ø8 × 21 stub axle; a tab below has a Ø3 hole 30 mm from the axle for the hanging weight's pin.
