TowerPro SG90 micro servo
What are the dimensions of the TowerPro SG90 micro servo? · Modern device · basis: TowerPro SG90 datasheet (university copy) — secondary, no maker drawing
Also called: towerpro sg90 micro servo dimensions, towerpro sg90 micro servo size, towerpro sg90 micro servo mounting holes, towerpro sg90 micro servo medidas, towerpro sg90 micro servo Maße
Exact dimensions. True size, with no tolerance added.
- length
- 23.1 mm
- width
- 12.2 mm
- height
- 29.0 mm
Notes
- TowerPro SG90 micro servo: 23.1 × 12.2 × 29 mm, 9 g. Sources disagree slightly (Mouser lists 23 × 12 × 29 mm). Mounting-tab hole spacing and shaft offset are not published (scan planned).
- No mounting-hole positions are published.
- The file is the outline; components and connectors are not modelled.
TowerPro SG90 micro servo size chart
| dimension | value |
|---|---|
| size | 23.1 × 12.2 × 29 mm |
| weight | 9 g |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| TowerPro SG90 datasheet | TowerPro SG90 micro servo | web | Publisher's page; dimensions are facts |
Free files

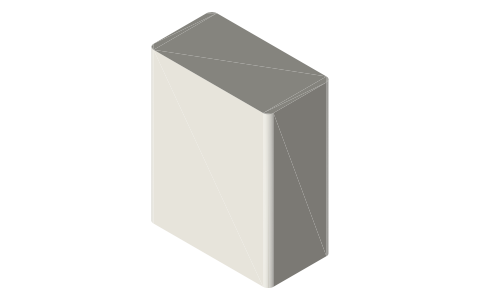

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
