Traxxas 3945X 15-tooth 32-pitch gear
What size is Traxxas 3945X gear? · Modern device · basis: Maker's parts list (Traxxas)
Also called: Traxxas 3945X, traxxas 3945X, Traxxas part 3945X, 3945X gear, 15-t pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw, Traxxas 3945X size, Traxxas 3945X dimensions, Traxxas 3945X replacement, repuesto Traxxas 3945X, Traxxas 3945X Ersatzteil
Exact dimensions. True size, with no tolerance added.
- length
- 13.39 mm
- width
- 13.46 mm
- height
- 1.0 mm
Notes
- Traxxas part 3945X: Gear, 15-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw. Size exactly as printed in Traxxas's parts list; the file is built from that size only.

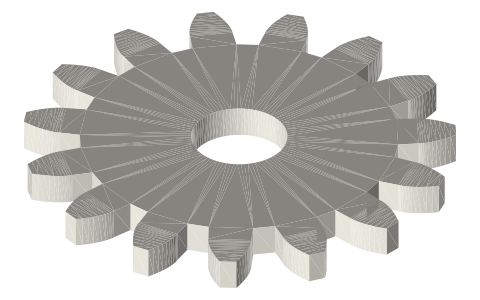

- 15-tooth 32-pitch gear, 20° involute, module 0.7937 mm, Ø13.49 OD, Ø3 bore — 1 mm reference (face width not printed).
- True size, no printing tolerance added.
Traxxas 3945X 15-tooth 32-pitch gear size chart
| dimension | value |
|---|---|
| part number | Traxxas 3945X |
| name (as printed) | Gear, 15-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw |
| size (as printed) | 3mm; 15-T pinion; 32-p |
| teeth | 15 |
| pitch | 32 diametral pitch (module 0.7937 mm) |
| pitch diameter | 11.91 mm |
| outside diameter | 13.49 mm (standard addendum) |
| bore | 3 mm |
| face width | not printed |
| used in | Traxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4) |
