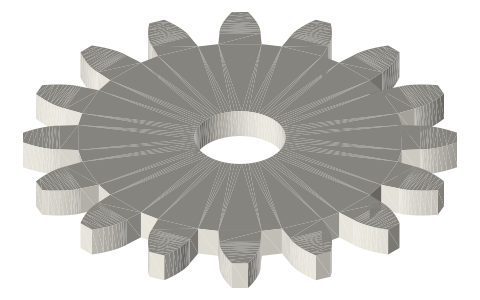

Traxxas 3946X 16-tooth 32-pitch gear
What size is Traxxas 3946X gear? · Modern device · basis: Maker's parts list (Traxxas)
Also called: Traxxas 3946X, traxxas 3946X, Traxxas part 3946X, 3946X gear, 16-t pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw, Traxxas 3946X size, Traxxas 3946X dimensions, Traxxas 3946X replacement, repuesto Traxxas 3946X, Traxxas 3946X Ersatzteil
Exact dimensions. True size, with no tolerance added.
- length
- 14.28 mm
- width
- 14.28 mm
- height
- 1.0 mm
Notes
- Traxxas part 3946X: Gear, 16-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw. Size exactly as printed in Traxxas's parts list; the file is built from that size only.
- 16-tooth 32-pitch gear, 20° involute, module 0.7937 mm, Ø14.29 OD, Ø3 bore — 1 mm reference (face width not printed).
- True size, no printing tolerance added.
Traxxas 3946X 16-tooth 32-pitch gear size chart
| dimension | value |
|---|---|
| part number | Traxxas 3946X |
| name (as printed) | Gear, 16-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw |
| size (as printed) | 3mm; 16-T pinion; 32-p |
| teeth | 16 |
| pitch | 32 diametral pitch (module 0.7937 mm) |
| pitch diameter | 12.70 mm |
| outside diameter | 14.29 mm (standard addendum) |
| bore | 3 mm |
| face width | not printed |
| used in | Traxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4) |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Traxxas (sheet hosted by Monsterhopups) | TRX-4 Unassembled Kit (Model 82016-4) parts list, REV. 230615 0246, p. 5 | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| traxxas-3946x-gear-16-t-pinion-32-p-heavy-duty-machined-hardened-steel-fits-3mm-profile | 16-tooth 32-pitch gear, 20° involute, module 0.7937 mm, Ø14.29 OD, Ø3 bore — 1 mm reference (face width not printed) | STEP · STL |
https://xemstudio.com/mcp (free, no account). Your AI can then look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-3946x-gear-16-t-pinion-32-p-heavy-duty-machined-hardened-steel-fits-3mm

Fits with
