Traxxas 3948X 18-tooth 32-pitch gear
What size is Traxxas 3948X gear? · Modern device · basis: Maker's parts list (Traxxas)
Also called: Traxxas 3948X, traxxas 3948X, Traxxas part 3948X, 3948X gear, 18-t pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw, Traxxas 3948X size, Traxxas 3948X dimensions, Traxxas 3948X replacement, repuesto Traxxas 3948X, Traxxas 3948X Ersatzteil
Exact dimensions. True size, with no tolerance added.
- length
- 15.87 mm
- width
- 15.72 mm
- height
- 1.0 mm
Notes
- Traxxas part 3948X: Gear, 18-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw. Size exactly as printed in Traxxas's parts list; the file is built from that size only.

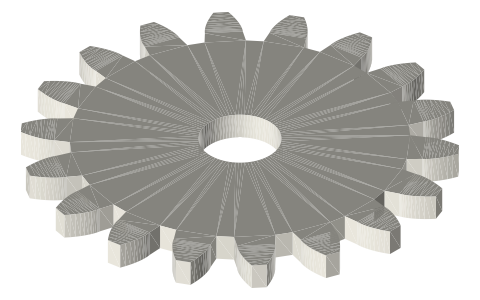

- 18-tooth 32-pitch gear, 20° involute, module 0.7937 mm, Ø15.88 OD, Ø3 bore — 1 mm reference (face width not printed).
- True size, no printing tolerance added.
Traxxas 3948X 18-tooth 32-pitch gear size chart
| dimension | value |
|---|---|
| part number | Traxxas 3948X |
| name (as printed) | Gear, 18-T pinion (32-p), heavy duty (machined, hardened steel) (fits 3mm shaft)/ set screw |
| size (as printed) | 3mm; 18-T pinion; 32-p |
| teeth | 18 |
| pitch | 32 diametral pitch (module 0.7937 mm) |
| pitch diameter | 14.29 mm |
| outside diameter | 15.88 mm (standard addendum) |
| bore | 3 mm |
| face width | not printed |
| used in | Traxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4) |
