Optical bubble counter for a blow-off line: 5 mm LED break-beam, ¼ in barbs

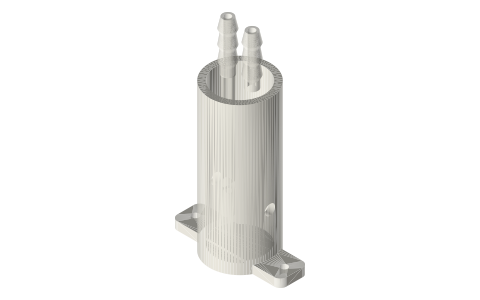

How do I count fermentation bubbles electronically? · Hardware · basis: Xem Studio design: a small water-filled chamber on the blow-off line; each bubble rising from the inlet tube crosses a beam between a 5 mm IR LED and a 5 mm phototransistor in two Ø5.1 holes

Also called: airlock bubble counter, fermentation bubble counter 3d print, blow off bubble sensor, esp32 bubble counter

Exact dimensions. True size, with no tolerance added.

sizes
1 in table

Notes

  • Run the blow-off hose from the lid barb (through a ½ × ¼ in reducing hose or a ¼ in barb port) into the inlet barb; fill the chamber about 35 mm deep with water or sanitiser so the beam (22 mm up) is under water. Each bubble breaks the beam once: count pulses on an ESP32 input to log the CO₂ rate.
  • Print it in a clear material, or seal the LED holes with clear epoxy; mount it upright with two M3 screws through the base.
  • Every clamp face is the ISO 2852 profile used across this site: 2.85 mm rim, flat face with the gasket groove (K 1.6 deep, R3 1.2 bottom, 23° walls, P2 0.8 edges) on C2, 20° back cone. Flange C3 / groove C2 / tube OD × wall, mm: ½–¾ in 25.0 / 20.4 (derived) / 12.7–19.05 × 1.65; 1–1½ in 50.5 / 43.5 / 25.4–38.1 × 1.65; 2 in 64.0 / 56.5 / 50.8 × 1.65; 2½ in 77.5 / 70.5 / 63.5 × 1.65; 3 in 91.0 / 83.5 / 76.2 × 1.65; 4 in 119.0 / 110.0 / 101.6 × 2.11; 6 in 166.9 (6.570 in) / 156.5 / 152.4 × 2.77; 8 in 217.7 (8.570 in) / 207.0 / 203.2 × 2.77; 10 in 268.5 / 261.0 / 254.0 × 3.40; 12 in 319.3 / 311.8 / 304.8 × 3.40.

Optical bubble counter for a blow-off line: 5 mm LED break-beam, ¼… size chart

chamber bore (mm)chamber h (mm)beam height (mm)led hole (mm)barbs
2470225.1¼ in in / out
