Frame for a 2 in tri-clamp elbow

What frame holds a 2 inch tri-clamp elbow? · Hardware · basis: Positions from the engine layout (tools/gen_diaphragm.py alpha_layout); the feet seats are cut by the fittings' own outer surfaces

Also called: tri clamp alpha frame, diaphragm stirling frame

Long Earth Society build part. The frame of my elbow diaphragm alpha. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • One piece: a base plate, a foot under the elbow (its seat is the elbow's outer surface) that carries the cold leg, a foot under the capped run of the hot tee, and a diagonal strut from the base up to a bearing block with two 625 pockets at the crank.
  • The strut runs 40–56 mm behind the plane of the legs, clear of every clamp and of the flywheel.

Frame for a 2 in tri-clamp elbow size chart

featurevalue
base430 × 130 × 8
crank above elbow centre257.4, 257.4
bearings2 × 625

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
bearing pocketsØ16 × 5625 bearingpressalpha-frame-*
shaft passageØ11.2Ø5 crankshaft (no contact)designedalpha-frame-*
foot seatsØ50.8 (tube OD), elbow outer surface2 in elbow and teedesignedalpha-frame-*
torch-stand holesØ4.5M4 clearance (ISO 273 medium)designedalpha-frame-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ISOISO 273 clearance holes for bolts and screws (fine / medium / coarse)standarddimensions are facts verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
alpha-frame-2inframe for the 2 in elbow diaphragm alpha: base 430 × 130 × 8, feet under the elbow and the hot tee, diagonal strut to a bearing block with two 625 pockets at the crank (257.4, 257.4) from the elbow centreSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-elbow-frame-2in

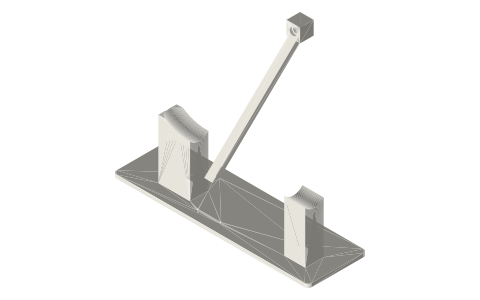

Frame for a 2 in tri-clamp elbow, isometric render of a generated part
Render of alpha-frame-2in from the free STEP; not to scale.

Questions

What does the frame carry?

Both legs (two feet), the crankshaft bearings (strut block) and the torch stand (two M4 holes).
