Clamp-on flow water jacket for 2 in tube (two halves, hose spigots)

How do I water-cool a plain tri-clamp tube? · Hardware · basis: Design values; M4 clearance holes ISO 273 medium

Also called: tri clamp water jacket, clamp on cooling jacket 2 inch

Used in Long Earth Society builds. Finned tri-clamp heat sink with PTFE thermal break

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
4 in table

Notes

  • Two halves bolted round the tube with four M4 screws; each half is its own water space with two Ø8 hose spigots (in and out), so the two run in series with a short hose between them. The inner wall is pressed on the tube by the bolts.
  • On the performance engines it sits over the cooler zone, 9.5 mm behind the clamp face (a 2 in clamp reaches 7.13 mm).
  • Optional: without it the cold end runs hot and the power falls; a wet rag on the cold end is the minimum.

Clamp-on flow water jacket for 2 in tube size chart

featurevalue
boreØ50.8 × 48
water spacer 27.4–31.4
spigots2 per half, Ø8 × 10
bolts4 × M4

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
boreØ50.8 × 482 in tube ODclampall
split1.0 total (0.5 per half)the other halfclampall
ear holesØ4.5M4 clearance (ISO 273 medium)designedall
hose spigotsØ8 × 10, Ø5 bore8 mm ID hosepressall
start behind the clamp face9.5a 2 in clamp reaches 7.13 behind the facedesignedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
water-jacket-half-2in-48-flowclamp-on flow water-jacket half for 2 in tube: bore Ø50.8 × 48, inner wall 2, water space 4, outer wall 2, end walls 2; ears with 2 × Ø4.5; two Ø8 × 10 hose spigots (Ø5 bore) on the crownSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-flow-water-jacket

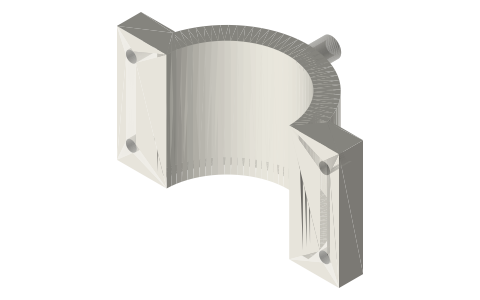

Clamp-on flow water jacket for 2 in tube (two halves, hose spigots), isometric render of a generated part
Render of water-jacket-half-2in-48-flow from the free STEP; not to scale.

Fits with

Questions

Which way does the water go?

In at the spigot farther from the clamp face, out at the nearer one; put the outlets up so the jacket purges its air.
