Frame for a horizontal 2 in tri-clamp spool and cylinder

What frame holds a horizontal 2 inch spool and a cylinder? · Hardware · basis: Design values

Also called: horizontal stirling frame

Long Earth Society build part. The frame of my horizontal gamma. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • One base with everything the engine stands on: a cradle under the water jacket, two pedestals for spool hangers on the power cylinder and bounce spool, the displacer-rod guide, and two uprights with the crank's 608 bearings.

Frame for a horizontal 2 in tri-clamp spool and cylinder size chart

featurevalue
base800 × 250 × 8
axis height138 above the bench
crank axisx 487.5

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
crank uprightsØ22 × 7 pockets608 bearing ODpressall
guide blockØ10 × 106 × 10 × 10 sleeve bushingpressall
cradleØ50.8 seathot-spool tube ODdesignedall
tapped holesM5 Ø4.2 × 15, M4 Ø3.3, M3 bracket Ø3.4 + 90° countersinkhanger bars, torch stand, shroud, generatordesignedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
horizontal-gamma-frame-2inhorizontal gamma frame: base 800 × 250 × 8, jacket cradle, two hanger pedestals (M5 tapped), displacer-rod guide block (Ø10 seat), two crank uprights with 608 pockets, torch-stand and shroud holes (M4 tapped)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-horizontal-spool-frame

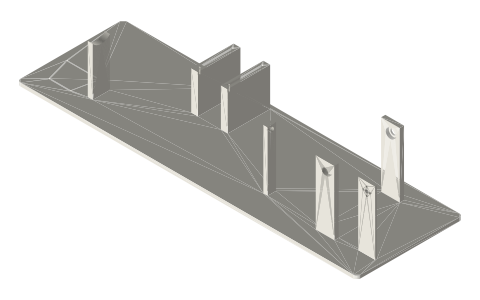

Frame for a horizontal 2 in tri-clamp spool and cylinder, isometric render of a generated part
Render of horizontal-gamma-frame-2in from the free STEP; not to scale.

Questions

How high are the cylinders?

138 mm above the bench: the Ø200 flywheel clears the base by 30.
