Frame for a 2 in tri-clamp tee

What frame holds a 2 inch tri-clamp tee and a shaft? · Hardware · basis: Positions from the engine layout (tools/gen_diaphragm.py gamma_layout); ISO 273 medium clearance for M3

Also called: tri clamp gamma frame, diaphragm stirling frame

Long Earth Society build part. The frame of my tee diaphragm gamma. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
4 in table

Notes

  • One piece: a base plate, a ring that stands the hot cap 17.5 mm above a tea light (windows let the air in), a tower behind the engine, a shelf for the two crank stands and a bracket for the beam pivot post.
  • Crank axis 208.0 above the base and 100 mm from the column axis, beam pivot 380.1 above the base.

Frame for a 2 in tri-clamp tee size chart

featurevalue
base210 × 200 × 8
column ringØ50 / Ø42 × 33.5
shelf top148.0
bracket top326.1

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
column ringØ42 / Ø50 × 33.5back of the 2 in hot capdesignedgamma-frame-*
shelf and bracket holesØ3.4M3 clearance (ISO 273 medium)designedgamma-frame-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ISOISO 273 clearance holes for bolts and screws (fine / medium / coarse)standarddimensions are facts verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
gamma-frame-2inframe for the 2 in tee diaphragm gamma: base 210 × 200 × 8, column ring Ø50 / Ø42 × 33.5 under the hot cap, tower to 326.1, crank-stand shelf at 148.0, pivot-post bracket at 326.1STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-tee-frame-2in

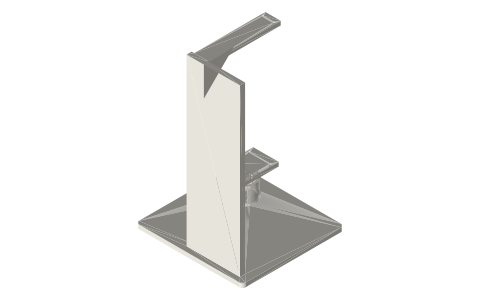

Frame for a 2 in tri-clamp tee, isometric render of a generated part
Render of gamma-frame-2in from the free STEP; not to scale.

Questions

What does the frame carry?

The column (on the ring), the crank stands (on the shelf) and the beam pivot post (on the bracket).
