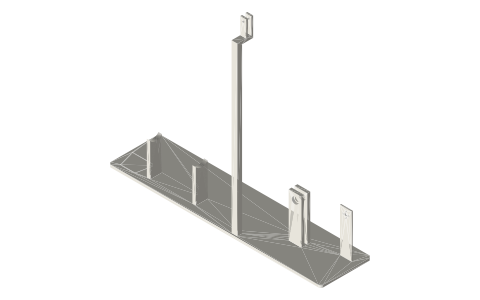

Frame for a 2 in tri-clamp tee with a walking beam
What frame holds a tri-clamp tee and a walking beam? · Hardware · basis: Design values
Also called: walking beam stirling frame
Long Earth Society build part. The frame of my walking-beam engine. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 3 in table
Notes
- One base: cradles under the hot spool and the tee, the beam's post, the crank's two uprights and the generator bracket.
Frame for a 2 in tri-clamp tee with a walking beam size chart
| feature | value |
|---|---|
| base | 730 × 175 × 8 |
| run axis | 138 above the bench |
| pivot | 626.4 above the bench |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| crank uprights | Ø22 × 7 pockets | 608 bearing OD | press | all |
| pivot cheeks | Ø5 | Ø5 dowel pivot pin | press | all |
| cradles | Ø50.8 seats | hot-spool and tee OD | designed | all |
| tapped holes | M4 Ø3.3, M3 bracket Ø3.4 + 90° countersink | torch stand, shroud, generator | designed | all |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| walking-beam-gamma-frame-2in | walking-beam gamma frame: base 730 × 175 × 8, two cradles, beam post with cheeks (Ø5 pivot holes), two crank uprights with 608 pockets, generator bracket, torch-stand and shroud holes (M4 tapped) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-tee-walking-beam-frame

Questions
How tall is it?
The beam pivot is 626 mm above the bench: the 6 in bounce spool sits under the piston-rod gland.
