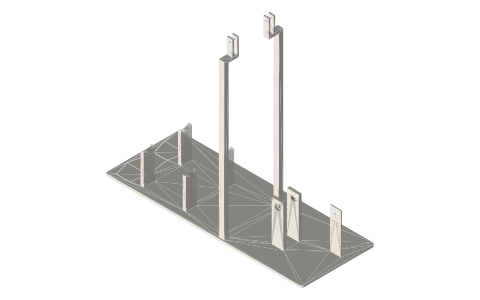

Frame for two 2 in tri-clamp tees with a walking beam
What frame holds two tri-clamp tees side by side? · Hardware · basis: Design values
Also called: twin beam stirling frame
Long Earth Society build part. The frame of my twin beam engine. Long Earth Society
Exact dimensions. True size, with no tolerance added.
- sizes
- 2 in table
Notes
- One base for two walking-beam units side by side, 139 mm apart: cradles, two beam posts (mirror images), the shared crank's two uprights and the generator bracket.
Frame for two 2 in tri-clamp tees with a walking beam size chart
| feature | value |
|---|---|
| base | 730 × 274 × 8 |
| unit spacing | 139.0 |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| twin-walking-beam-gamma-frame-2in | twin walking-beam gamma frame: base 730 × 274 × 8, four cradles, two beam posts, two crank uprights with 608 pockets, generator bracket, holes for two torch stands and two shrouds | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-twin-tee-walking-beam-frame

Questions
Why mirror the second unit?
So both units' rods and links run on the crank's inner side and one shaft carries both webs, the flywheel and the pulley between the two bearings.
