Frame for a vertical 2 in tri-clamp spool stack

What frame holds a vertical 2 inch tri-clamp stack? · Hardware · basis: Design values; torch-stand and shroud hole pattern as the sealed generator's frame

Also called: stirling beta frame tri clamp

Long Earth Society build part. The frame of my charged beta. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
2 in table

Notes

  • Base and wall: the column hangs from two spool hangers on the power cylinder; the burner shroud and torch stand use the sealed generator's hole pattern.

Frame for a vertical 2 in tri-clamp spool stack size chart

featurevalue
base260 × 170 × 8
wallx ±62, to z 316

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
hanger holes4 × Ø5.5M5 clearancedesignedall
tapped holes5 × M4 Ø3.3torch stand, burner shroud feetdesignedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
charged-beta-frame-2incharged beta frame: base 260 × 170 × 8, wall x ±62 to z 316 with two hanger bars' holes, gussets, torch-stand and shroud holes (M4 tapped)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-vertical-stack-frame

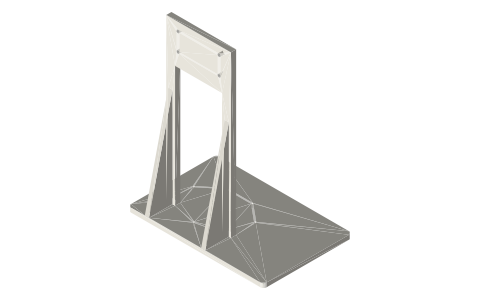

Frame for a vertical 2 in tri-clamp spool stack, isometric render of a generated part
Render of charged-beta-frame-2in from the free STEP; not to scale.

Questions

Where does it hang?

Two hangers on the cold power cylinder; nothing touches the hot spool.
