Trip-hammer helve 200 × 12 × 8, Ø5 pivot 80 mm from the tail

What is a hammer helve? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: hammer helve, hammer lever, mango del martinete, Hammerhelm

Exact dimensions. True size, with no tolerance added.

length
200.0 mm
width
12.0 mm
height
8.0 mm

Notes

  • 200 × 12 × 8 bar pivoted on a Ø5 pin 80 mm from its tail end (first-order lever: the wiper presses the tail down, the 120 mm head end rises; when the wiper slips off, the head falls).
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Trip-hammer helve 200 × 12 × 8, Ø5 pivot 80 mm from the tail size chart

dimensionvalue
bar200 × 12 × 8 mm
pivotØ5, 80 mm from the tail
arms80 (tail) / 120 (head)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 353: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
trip-hammer-helve-200x12helve, z 0..8, pivot hole along Y at x 0, z 4, tail on −XSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=trip-hammer-helve-200x12

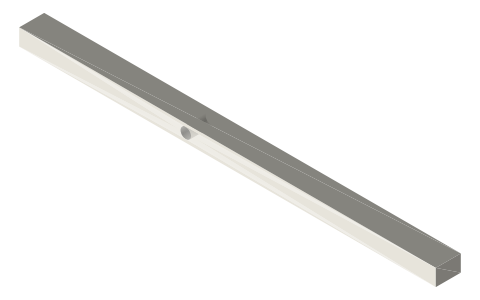

Trip-hammer helve 200 × 12 × 8, Ø5 pivot 80 mm from the tail, isometric render of a generated part
