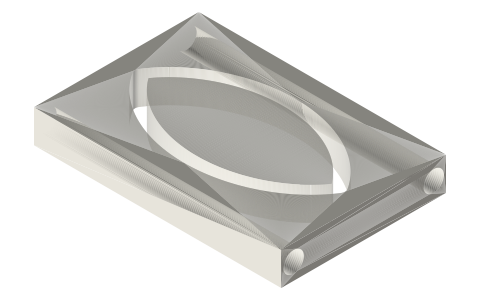

Uniform-motion yoke plate 60 × 40 × 8 with closed channel for a 12 mm crank

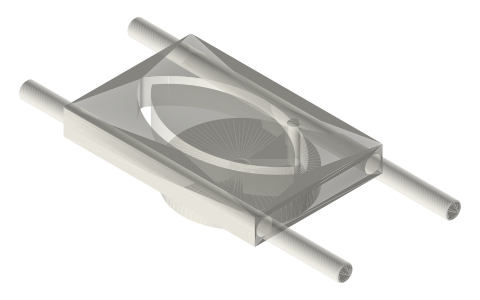

What is a uniform-motion crank channel? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance
Also called: constant velocity cam slot, uniform motion yoke, yugo de movimiento uniforme, Gleichlaufkulisse
Exact dimensions. True size, with no tolerance added.
- length
- 60.0 mm
- width
- 40.0 mm
- height
- 8.0 mm
Notes
- 60 × 40 × 8 plate with a closed 3 mm channel through it whose centre line is the crank-pin path drawn in the plate's own frame when the plate moves at constant speed: x = r cos θ − X(θ), y = r sin θ with X(θ) linear in θ (24 mm out over half a turn, back over the other half). Two Ø5 bores along X (y = ±17) for the guide pillars.
- The channel is a rounded diamond, 51 × 27 mm over its walls; the pin changes direction at the two pointed ends.
- Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).
Uniform-motion yoke plate 60 × 40 × 8 with closed channel for a 12… size chart
| dimension | value |
|---|---|
| plate | 60 × 40 × 8 mm |
| channel | 3 mm wide, closed loop 51 × 27 |
| crank radius | 12 mm |
| guide bores | 2 × Ø5 at y = ±17 |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 354: figure, his text and an animation | web | Publisher's page; dimensions are facts |
| Xem Studio | drawing | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=uniform-motion-yoke-plate-60x40-r12

Fits with
Questions
What is a uniform-motion crank channel?
60 × 40 × 8 plate with a closed 3 mm channel through it whose centre line is the crank-pin path drawn in the plate's own frame when the plate moves at constant speed: x = r cos θ − X(θ), y = r sin θ with X(θ) linear in θ (24 mm out over half a turn, back over the other half). Two Ø5 bores along X (y = ±17) for the guide pillars.
