V-wheel Ø23.89 × 10.23 for V-slot extrusion

What are the dimensions of a V-slot V-wheel? · Hardware · basis: OpenBuilds-size solid V-wheel: Ø23.89 × 10.23, 90° groove, two 625 bearings on a 1 mm spacer lip

Also called: v wheel dimensions, openbuilds v wheel size, v slot wheel stl, solid v wheel 625

Long Earth Society build part. Flywheel shaft blocks and displacer guides on the LES engines. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
5 in table

Notes

  • A wheel Ø23.89 × 10.23 with a 90° V groove 3.2 deep around the middle; the groove rides the V of a 6 mm V-slot.
  • A Ø16 bore (625 OD) runs through, with a 1 mm lip at mid-width (Ø11 hole) that separates the two 625 bearings.
  • Axle: M5 through the two 625 bores.

V-wheel Ø23.89 × 10.23 for V-slot extrusion size chart

featurevalue (mm)
OD × width23.89 × 10.23
groove90°, 3.2 deep
boreØ16 (two 625)
spacer lipØ11 hole × 1
axleM5

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
bearing pocketØ16two 625 bearingspressvwheel-*
spacer lipØ11 × 1625 outer racesdesignedvwheel-*
V groove90°, 3.2 deepV-slot extrusiondesignedvwheel-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

McMaster-CarrMounted bearings (free STEP per part, for your own design use; no redistribution)STEP, PDFMcMaster-Carr site terms verify
McMaster-CarrSleeve bearings (free STEP per part, for your own design use; no redistribution)STEP, PDFMcMaster-Carr site terms verify
OpenBuildsSolid V wheel kitweb, STEPOpenBuilds site verify
WikipediaPlain bearingwebCC BY-SA 4.0 (text)
Long Earth SocietyEngine and rig buildsweb, videoLES site

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
vwheel-openbuilds-23-9OpenBuilds-style V-wheel: Ø23.89 × 10.23, 90° V groove 3.2 deep, Ø16 pocket for two 625 bearings with a 1 mm spacer lip (Ø11)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=v-wheel

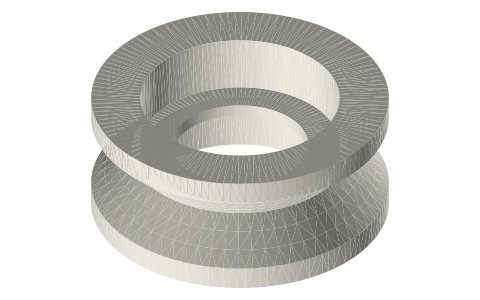

V-wheel Ø23.89 × 10.23 for V-slot extrusion, isometric render of a generated part
Render of vwheel-openbuilds-23-9 from the free STEP; not to scale.

Questions

What size is a V-slot V-wheel?

23.89 mm OD, 10.23 mm wide, 90° groove 3.2 deep, two 625 (5 × 16 × 5) bearings either side of a 1 mm lip.

What bearings go in a V-wheel?

Two 625 bearings, Ø16 OD, on an M5 axle.
