Apple AirTag dimensions: Ø31.9 × 8.0 mm, 11 g, holder STL

What are the AirTag dimensions? · Modern device · basis: Apple accessory dimensional drawing (developer.apple.com/accessories); numbers transcribed, geometry built by Xem Studio

Also called: airtag dimensions, airtag size mm, airtag holder 3d print, airtag mount

Exact dimensions. True size, with no tolerance added.

length
31.87 mm
width
31.87 mm
height
7.98 mm

Notes

  • From Apple's published dimensional drawing for AirTag: Ø31.87 × 7.98 mm. The body file is the drawing's own profile table revolved about the centre axis (true shape of the outside); subtract it for a holder, mount or pocket.
  • Sizes are exact nominal millimetres, true size: add your own clearance.
  • Apple's notes for accessory makers: 1 CASE SHOULD NOT OBSTRUCT ACOUSTIC AREA (speaker keepout Ø25.75); 2 ANTENNA KEEPOUT AREA (Ø37.31). TO MAXIMIZE ANTENNA PERFORMANCE, NO METAL SHOULD BE CLOSER THAN THIS RADIAL KEEPOUT INCLUDING ABOVE AND BELOW THE DEVICE, MINIMIZE METAL OUTSIDE THE KEEPOUT AS WELL
  • Ø31.9 mm (1.26 in), 8.0 mm (0.31 in) thick; 11 g (1st generation), 11.8 g (2nd generation, same size).
  • Holders (free STL): pocket Ø32.2 × 8.2 with a 0.6 mm snap lip; print in PETG or TPU so the lip flexes. Keep metal away from the face for range.

Apple AirTag dimensions: Ø31.9 × 8.0 mm, 11 g, holder STL size chart

parametervalue
width × length × thickness31.87 × 31.87 × 7.98 mm
overall (as printed)plan view: Ø31.87, Ø28.94, Ø27.84, Ø27.90, Ø25.55 (concentric circles, leaders from outside to inside in this order)
overall (as printed)side view heights from boxed datum 0.00 (bottom of stainless back): 0.88, 0.94, 1.84, 1.89, 2.29, 7.98
overall (as printed)side view: Ø23.11 (flat of the stainless back / battery door), 0.05 CHAMFER ALL AROUND
overall (as printed)DETAIL A max radial coordinate 15.93
outside profile (r from the axis, z from the back)(0.005, 7.98); (0.835, 7.97); (1.665, 7.96); (2.495, 7.95); (3.325, 7.95); (4.155, 7.92); (4.975, 7.89); (5.805, 7.85); (6.635, 7.81); (7.455, 7.75); (8.285, 7.69); (9.105, 7.62); (9.935, 7.54); (10.755, 7.44); (11.575, 7.33); (12.385, 7.2); (13.185, 7.03); (13.965, 6.82); (14.705, 6.55); (15.355, 6.18); (15.805, 5.67); (15.935, 4.98); (15.695, 4.17); (15.165, 3.38); (14.475, 2.75); (12.725, 2.29); (12.725, 0.88); (11.755, 0.75); (10.775, 0.63); (9.805, 0.52); (8.825, 0.42); (7.845, 0.33); (6.865, 0.26); (5.895, 0.19); (4.915, 0.13); (3.935, 0.08); (2.955, 0.05); (1.965, 0.02); (0.985, 0.01); (0.005, 0)
speaker keepoutØ25.75 - DO NOT OBSTRUCT THIS AREA (note 1)
antenna keepout areaØ37.31 (note 2)
stainless back flatØ23.11; 0.05 CHAMFER ALL AROUND

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Apple SupportAirTag technical specificationswebPublisher's page; dimensions are facts
Apple SupportAirTag (2nd generation) technical specificationswebPublisher's page; dimensions are facts
AppleAirTag dimensional drawing (Accessory Design Guidelines)PDFApple's terms; linked, not hosted

Free files

★ Free files 4 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
airtag-envelope-31.9x8AirTag envelope Ø31.9 × 8.0 mmSTEP · STL
airtag-holder-keyringAirTag keyring holder: Ø32.2 × 8.2 pocket, snap lip, keyring loopSTEP · STL
airtag-holder-screw-tabsAirTag holder with two M3 screw tabs (bikes, bags, furniture)STEP · STL
apple-airtag-bodyAirTag at true size: the drawing's printed profile (DETAIL A, 40 points) revolved about the centre axisSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=apple-airtag

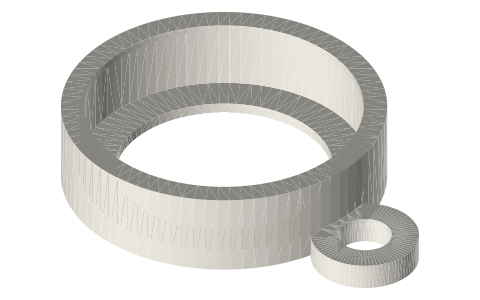

Apple AirTag dimensions: Ø31.9 × 8.0 mm, 11 g, holder STL, isometric render of a generated part
Render of apple-airtag-body from the free STEP; not to scale.

Fits with

Questions

How big is an AirTag?

31.9 mm across and 8.0 mm thick (Apple).
