Bayonet joint: two studs in L-slots, locked by a 30° turn

How does a bayonet joint lock? · Hardware · basis: Xem Studio design following Brown No. 245 (1868)

Also called: bayonet joint, bayonet mount, bayonet coupling, twist lock, unión de bayoneta, Bajonettverschluss

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: studs; stays the same: slot, lock; step to the nearest standard size (and redraw the hole or pocket it fits): tube.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • Two studs on the inner tube slide straight into the two L-shaped slots of the socket; a part turn then carries them along the slots' short legs to their closed ends, where they hold the tubes together against being pulled apart. Turning back and pulling releases it.
  • Ø20 tube in a Ø20 socket bore (line on line), Ø3 studs, slots 3 wide, 8 mm deep with a 30° turn; drawn locked, each stud seated in the round end of its slot.
  • Brown's No. 245 (bayonet joint).

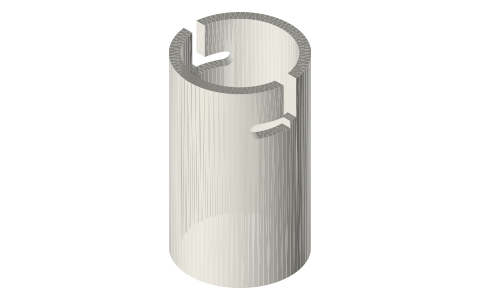

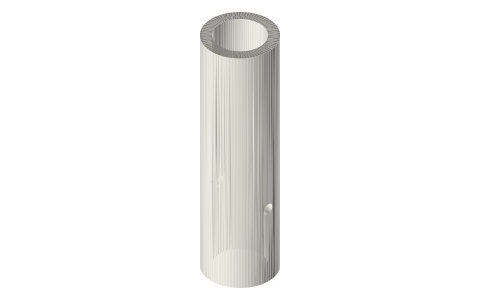

  • Parts (each has its own page): bayonet-tube-20x14-studs-3, bayonet-socket-24x20-l-slots, dowel-pins-metric.
  • Brown's movement No. 245 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Bayonet joint: two studs in L-slots, locked by a 30° turn size chart

parametervalue
tubeØ20
studs2 × Ø3
slot8 axial + 30° turn, 3 wide
lock30° turn

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 245: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
bayonet-joint-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=bayonet-joint-mechanism

Bayonet joint: two studs in L-slots, locked by a 30° turn, isometric render of a generated part

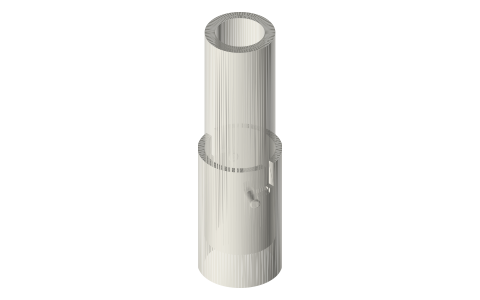

Render of bayonet-joint-mechanism-assembly from the free STEP; not to scale.
