Open flat belt and two pulleys (2 : 1)
How do you work out a belt drive's ratio and length? · Hardware · basis: Xem Studio design following Brown No. 1 (1868)
Also called: belt drive, pulley and belt, flat belt drive, transmisión por correa y poleas, Riementrieb
Exact dimensions. True size, with no tolerance added.
- sizes
- 4 in table
Notes
- Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: pulleys, centres; stays the same: ratio; step to the nearest standard size (and redraw the hole or pocket it fits): belt.
- Resize: Speed ratio = driven Ø / driver Ø (or driven / driver teeth), independent of size. Timing belts and chain come in fixed pitches: keep the pitch and change the tooth counts, or step to the next standard pitch.
- Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
- An open belt on two pulleys turns both shafts the same way; speed ratio = D₂/D₁ = 80/40 = 2 : 1 (less a little slip). Belt inside length here 471.36 mm for 140 mm centres.
- Wrap on the small pulley = 2·acos((R₂ − R₁)/C) = 163.6°: the smaller the wrap, the less torque before slipping.
- Brown's No. 1 (belt and pulleys); a crossed belt (No. 2) reverses the driven shaft.
- Parts (each has its own page): flanged-flat-pulley-40, flanged-flat-pulley-80, flat-belt-1-5x16-pulleys-40-80-140.
- Brown's movement No. 1 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.
Open flat belt and two pulleys size chart
| parameter | value |
|---|---|
| pulleys | Ø40 and Ø80, flanged |
| centres | 140 mm |
| ratio | 2 : 1 |

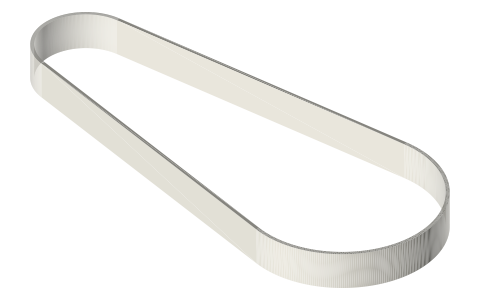

| belt | 16 × 1.5, 471.36 mm |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 1: figure, his text and an animation | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| belt-and-pulleys-mechanism-assembly | Assembled mechanism, all parts placed at one pose (STEP keeps each part separate) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=belt-and-pulleys-mechanism

Fits with
Questions
How do you work out a belt drive's ratio and length?
An open belt on two pulleys turns both shafts the same way; speed ratio = D₂/D₁ = 80/40 = 2 : 1 (less a little slip). Belt inside length here 471.36 mm for 140 mm centres.
