Flat belt 16 × 1.5 for Ø40 and Ø80 pulleys at 140 mm (loop drawn on the pulleys)

How long is this flat belt? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: flat belt, open belt, correa plana, Flachriemen

Exact dimensions. True size, with no tolerance added.

length
203.0 mm
width
83.0 mm
height
16.0 mm

Notes

  • Open flat belt 16 × 1.5 mm drawn on Ø40 and Ø80 pulleys 140 mm apart: inside length = 2√(C² − (R₂ − R₁)²) + R₁·2β + R₂(2π − 2β), β = acos((R₂ − R₁)/C) → 471.36 mm.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Flat belt 16 × 1.5 for Ø40 and Ø80 pulleys at 140 mm size chart

dimensionvalue
width × thickness16 × 1.5 mm
inside length471.36 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 1: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
flat-belt-16x1.5-40-80-c140belt loop, z 2..18STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=flat-belt-1-5x16-pulleys-40-80-140

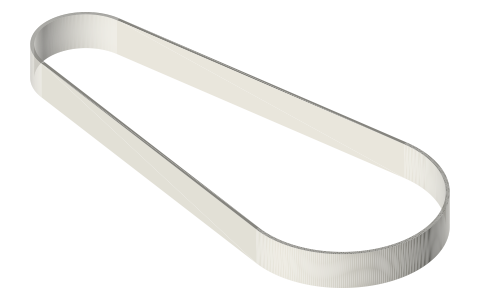

Flat belt 16 × 1.5 for Ø40 and Ø80 pulleys at 140 mm (loop drawn on the pulleys), isometric render of a generated part
