Blocks and tackle, two sheaves in each block (4 : 1)

How much does a block and tackle reduce the effort? · Hardware · basis: Xem Studio design following Brown No. 14 (1868)

Also called: block and tackle, tackle, fiddle block, 4 to 1 pulley, polipasto (aparejo), Flaschenzug

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: upper block, lower block.
  • Resize: Mechanical advantage = number of rope segments holding the load, independent of size; sheave grooves follow the rope Ø you choose, not the scale factor.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • With n sheaves in the lower (moving) block, 2n strands hold it up: the power is the weight divided by twice the number of lower sheaves (P = W/4 here), and the hauling part moves four times as far.

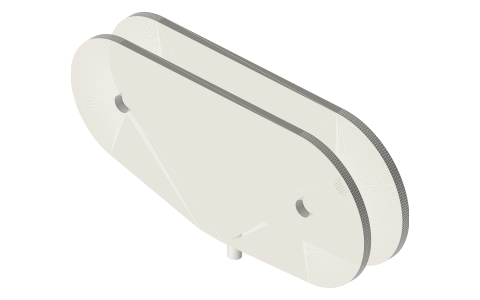

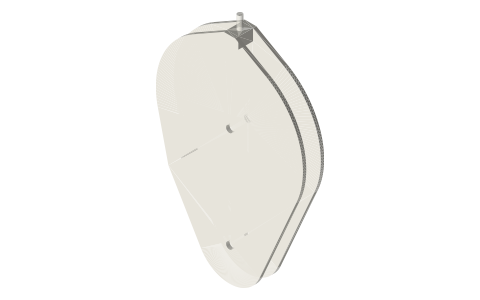

  • Drawn as a fiddle tackle so every strand hangs vertical in one plane: the upper block has pitch-Ø80 and pitch-Ø30 sheaves one above the other, the lower block pitch-Ø19 and pitch-Ø25 side by side. Standing end on the upper block's becket; strands at x = −34, −15, 15, 40 carry the load, the hauling part comes down at x = −40.
  • Brown's No. 14 (blocks and tackle). Real blocks put the sheaves side by side on one pin; the rope then leads slightly sideways between them.

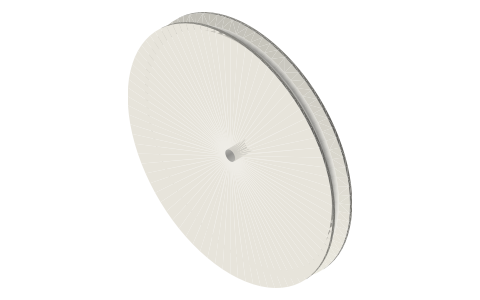

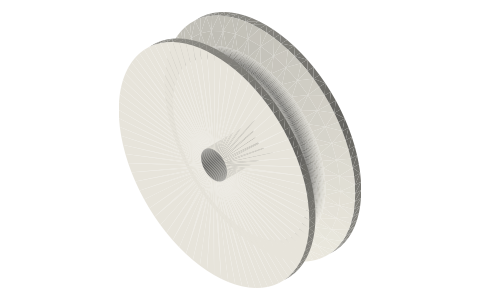

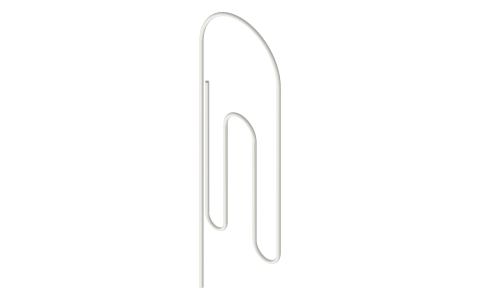

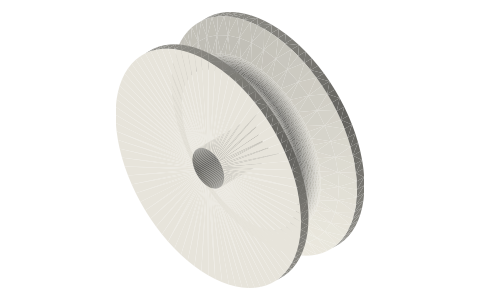

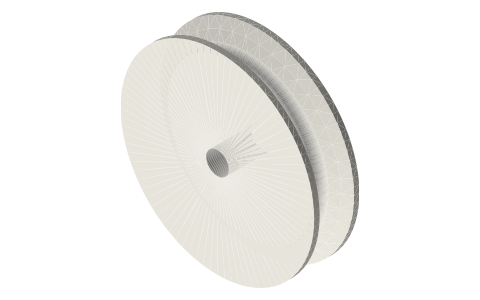

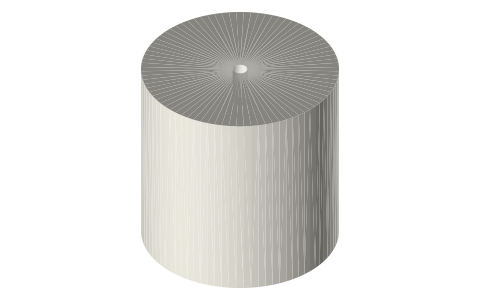

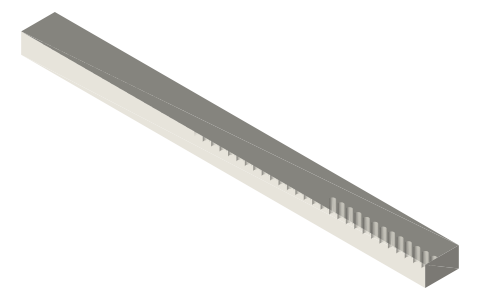

  • Parts (each has its own page): tackle-beam-240-sockets, tackle-block-fiddle-upper-80-30, tackle-block-fiddle-lower-19-25, rope-sheave-3mm-pitch-80, rope-sheave-3mm-pitch-30, rope-sheave-3mm-pitch-19, rope-sheave-3mm-pitch-25, ropes-3mm-blocks-and-tackle, tackle-weight-d40x40-socket, dowel-pins-metric.
  • Brown's movement No. 14 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Blocks and tackle, two sheaves in each block size chart

parametervalue
upper blockpitch Ø80 + pitch Ø30 sheaves
lower blockpitch Ø19 + pitch Ø25 sheaves
supporting strands4
mechanical advantage4 (no friction)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 14: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
blocks-and-tackle-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=blocks-and-tackle-mechanism

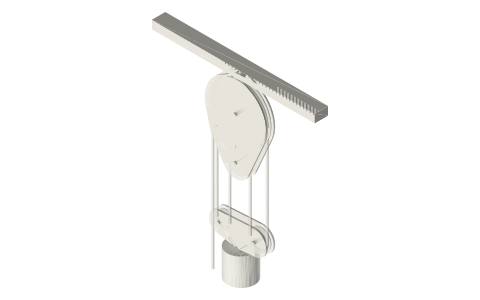

Blocks and tackle, two sheaves in each block (4 : 1), isometric render of a generated part
Render of blocks-and-tackle-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How much does a block and tackle reduce the effort?

With n sheaves in the lower (moving) block, 2n strands hold it up: the power is the weight divided by twice the number of lower sheaves (P = W/4 here), and the hauling part moves four times as far.
