Standard cable and plug sizes: USB-C, USB-A, Micro-B, Lightning, HDMI, RJ45, DC barrel, cable and power-cord diameters

How wide is a USB-C plug? · Standard part · basis: USB 2.0 and USB Type-C specification values (via connector makers and spec extracts), cable makers' datasheets, cord makers' tables

Also called: usb c plug dimensions, lightning cable diameter, cable thickness mm, usb c cable diameter, hdmi plug size, cable clip 3d print, extension cord diameter

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
16 in table

Notes

  • USB-C: receptacle opening 8.34 × 2.56; plug tongue 8.25 × 2.4; plug body (overmold) commonly at most 12.35 × 6.5 mm — size cut-outs and grommets for that.
  • USB-A: plug 12.0 × 4.5, receptacle 12.5 × 5.12; plug body at most 16 × 8. Micro-B: plug 6.85 × 1.8, body at most 10.6 × 8.5. Lightning plug 6.7 × 1.5 (body not published; one cable's is 10.6 × 6.0).
  • HDMI: Type A plug 13.9 × 4.45 (receptacle 14.0 × 4.55), Mini (C) 10.42 × 2.42, Micro (D) 5.83 × 2.20; plug bodies are not published (licensed spec). RJ45 plug 11.68 × 8.00 × 22.48.
  • DC barrel 5.5 × 2.1: sleeve Ø5.5, pin hole Ø2.1, 9.5 long.
  • Cable diameters: USB-C to Lightning 3.6–3.8; USB-C USB 2.0 4.4; USB 3.1 / Thunderbolt 4 4.6–4.7; HDMI 6.3–6.5; Cat5e 4.83; Cat6 5.69. Power cords: SPT-2 flat 18/2 3.6 × 6.9, 16/3 3.9 × 9.5; SJT round 18/3 7.7–8.0, 16/3 8.4–8.8, 14/3 9.3–9.6, 12/3 11.3.
  • Clips (free STL) for Ø3.6 / 4.5 / 6.4 / 8.0 / 9.5 cables snap on through a 0.7 d opening; the desk grommet slot passes a USB-C plug body.

Standard cable and plug sizes: USB-C, USB-A, Micro-B, Lightning… size chart

itemsize (mm)
USB-C receptacle8.34 × 2.56
USB-C plug body (max)12.35 × 6.5
USB-A plug / receptacle12.0 × 4.5 / 12.5 × 5.12
USB-A plug body (max)16 × 8
Micro-B plug / body max6.85 × 1.8 / 10.6 × 8.5
Lightning plug6.7 × 1.5
HDMI A plug13.9 × 4.45
HDMI Mini / Micro plug10.42 × 2.42 / 5.83 × 2.20
RJ45 plug11.68 × 8.00 × 22.48
DC barrel 5.5 × 2.1Ø5.5, pin Ø2.1, 9.5 long
USB-C to Lightning cableØ3.6–3.8
USB-C cable (USB 2.0 / 3.x)Ø4.4 / 4.6–4.7
HDMI cableØ6.3–6.5
Cat5e / Cat6Ø4.83 / Ø5.69
SPT-2 18/2 flat cord3.56 × 6.86
SJT 18/3 / 16/3 / 14/3 round cordØ7.7–8.0 / 8.4–8.8 / 9.3–9.6

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
USB-C plugtongue 8.25 × 2.4; overmold at most 12.35 × 6.5USB-C receptacle opening 8.34 × 2.56; panel cutout / grommet for the overmolddesignedusb-c-*
USB-A plug12.0 × 4.5; overmold at most 16 × 8USB-A receptacle 12.5 × 5.12designedusb-a-*
RJ45 plug11.68 × 8.00 × 22.48RJ45 jack opening (11.7 × 8 on the Amphenol RJHSE-538X)designedrj45-*
cable clipsØ3.6 / 4.5 / 6.4 / 8.0 / 9.5 cable seatscable Ø of the same nominal size (USB-C–Lightning 3.6–3.8, USB-C 4.4, Cat6 5.69)slidecable-clip-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Wikipedia (USB 2.0 / Type-C spec figures)USB hardwarewebPublisher's page; dimensions are facts
MolexUSB Type-C connector specification summary (PDF)webPublisher's page; dimensions are facts
L-com (vendor drawing)USB-C plug overmold 12.35 maxwebPublisher's page; dimensions are facts
ASUSHDMI connector typeswebPublisher's page; dimensions are facts
Wikipedia (TIA-1096-A / ISO 8877)Modular connectorwebPublisher's page; dimensions are facts
Same Sky5.5 × 2.1 DC plugwebPublisher's page; dimensions are facts
Monoprice (drawing)USB-C to A cable 4.4 mmwebPublisher's page; dimensions are facts
RS (datasheet)USB-C to Lightning cable 3.6 mmwebPublisher's page; dimensions are facts
Monoprice (drawing)HDMI 8K cable 6.3 mmwebPublisher's page; dimensions are facts
Belden1583A Cat5ewebPublisher's page; dimensions are facts
Belden2412 Cat6webPublisher's page; dimensions are facts
AWCSPT-2 cord sizeswebPublisher's page; dimensions are facts
IEWCSJT cordwebPublisher's page; dimensions are facts
SouthwireSJTOW cordwebPublisher's page; dimensions are facts

Free files

★ Free files 9 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
usb-c-plug-overmold-12.35x6.5x20USB-C plug body at the common maximum 12.35 × 6.5 (20 long; real bodies 20–42)STEP · STL
usb-a-plug-overmold-16x8x25USB-A plug body at the USB 2.0 maximum 16 × 8 (25 long)STEP · STL
rj45-plug-11.68x8x22.48RJ45 (8P8C) plug 11.68 × 8.00 × 22.48 (latch not modelled)STEP · STL
cable-clip-3.6mmSnap cable clip for Ø3.6 cable, screw tabSTEP · STL
cable-clip-4.5mmSnap cable clip for Ø4.5 cable, screw tabSTEP · STL
cable-clip-6.4mmSnap cable clip for Ø6.4 cable, screw tabSTEP · STL
cable-clip-8.0mmSnap cable clip for Ø8.0 cable, screw tabSTEP · STL
cable-clip-9.5mmSnap cable clip for Ø9.5 cable, screw tabSTEP · STL
desk-grommet-60mm-usb-c-slotDesk grommet for a Ø60 hole: slot passes a USB-C plug bodySTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=cable-and-plug-sizes

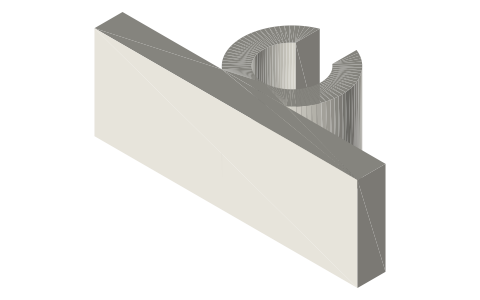

Standard cable and plug sizes: USB-C, USB-A, Micro-B, Lightning, HDMI, RJ45, DC barrel, cable and power-cord diameters, isometric render of a generated part
Render of cable-clip-4.5mm from the free STEP; not to scale.

Fits with

MagSafe charger puck and Apple Watch charger dimensions, MagSafe case thickness limit, isometric render of a generated part
MagSafe charger puck and Apple Watch charger dimensions, MagSafe case thickness limit4 sizes★ 2 files
length
Garage wall rail systems: published sizes (GearTrack, FastTrack, Husky, VersaTrack, Ryobi LINK, Packout plate)6 sizes★ sheet
PG cable glands: thread and panel hole PG7–PG48 (DIN 40430), height, wrench flat, cable range + hole gauge, isometric render of a generated part
PG cable glands: thread and panel hole PG7–PG48 (DIN 40430), height, wrench flat, cable range + hole gauge276.1×63.4×3.0 mm★ 1 file
Metric cable glands M12–M63: thread, panel hole (EN 60423), cable range, height, key size + hole gauge, isometric render of a generated part
Metric cable glands M12–M63: thread, panel hole (EN 60423), cable range, height, key size + hole gauge332.7×79.4×3.0 mm★ 1 file
Heat shrink tubing sizes: supplied and recovered inside diameter, 2:1 and 3:1, 3/64 to 4 in (TE VERSAFIT)22 sizes★ sheet
length
NEMA plug and receptacle configurations: 1-15, 5-15, 5-20, 6-15, 6-20, 14-30, 14-50, L5-30, L14-30 (blade numbers as published)11 sizes★ sheet
IEC 60320 appliance couplers: C13 / C14, C5 / C6, C7 / C8, C15 / C16, C17 / C18, C19 / C20, C21 to C24 (pin spacing, ratings, snap-in panel numbers)17 sizes★ sheet
AWG wire gauge table (ASTM B258): 4/0 to 56 AWG, diameter in mils, inches and mm, area in circular mils and mm²60 sizes★ sheet
Metric wire sizes (IEC 60228): 0.5 to 2500 mm² with strands and conductor diameter, and the nearest AWG34 sizes★ sheet
length
International mains plugs, IEC TR 60083 types A to N: standard, pin or blade size, length, centre distance and earth contact (Schuko, BS 1363, Europlug, AS/NZS 3112 and more)14 sizes★ sheet
Paracord types (MIL-C-5040 Type I to IV, 95 / 325 / 550 cord): diameter, inner strands and breaking strength20 sizes★ sheet

Questions

How big is a USB-C plug?

The metal tongue is 8.25 × 2.4 mm; the plastic body is usually at most 12.35 × 6.5 mm.

How thick is a phone charging cable?

About 3.6–3.8 mm (USB-C to Lightning) and 4.4–4.7 mm (USB-C).
