Cardan joint cross (spider) 14 × 14, 7 mm arms, Ø3 pin holes

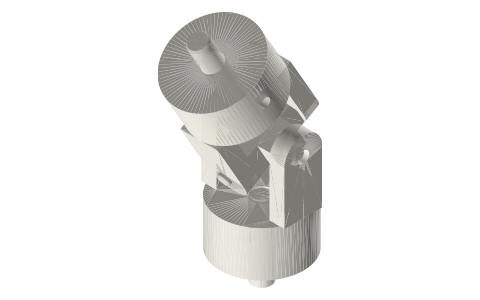

What is the cross of a universal joint? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: universal joint spider, u joint cross, cardan cross, cruceta de cardán, Kardankreuz

Exact dimensions. True size, with no tolerance added.

length
14.0 mm
width
14.0 mm
height
7.0 mm

Notes

  • Cross of two 7 × 7 mm arms, 14 mm across (the fork gap): a Ø3 hole straight through one arm for the long pin (dowel 3 × 20) and two Ø3 holes in the other arm from its ends to 2 mm from the centre for two short pins (dowel 3 × 10); the four pin ends are the trunnions the yokes turn on.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Cardan joint cross (spider) 14 × 14, 7 mm arms, Ø3 pin holes size chart

dimensionvalue
arms7 × 7 mm, 14 across
through holeØ3 along X
blind holes2 × Ø3, 5 deep, along Y

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 50: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
cardan-spider-14spider, centred on the originSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=cardan-spider-14

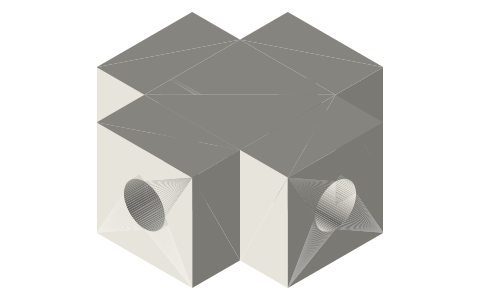

Cardan joint cross (spider) 14 × 14, 7 mm arms, Ø3 pin holes, isometric render of a generated part
Render of cardan-spider-14 from the free STEP; not to scale.

Fits with

Questions

What is the cross of a universal joint?

Cross of two 7 × 7 mm arms, 14 mm across (the fork gap): a Ø3 hole straight through one arm for the long pin (dowel 3 × 20) and two Ø3 holes in the other arm from its ends to 2 mm from the centre for two short pins (dowel 3 × 10); the four pin ends are the trunnions the yokes turn on.
