Cardan joint yoke Ø22, Ø5 bore, forks 14 apart (Ø3 cross-pin holes)

What is a Cardan joint yoke? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: universal joint yoke, u joint yoke, cardan yoke, horquilla de cardán, Kardangabel

Exact dimensions. True size, with no tolerance added.

length
22.0 mm
width
22.0 mm
height
31.0 mm

Notes

  • Ø22 × 12 hub with a Ø5 bore and an M3 set-screw hole (Ø2.5 tap drill), carrying two 4 mm fork lugs 14 mm apart; the Ø3 cross-pin hole is 14 mm above the hub, far enough that two yokes clear each other at 30° shaft angle.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Cardan joint yoke Ø22, Ø5 bore, forks 14 apart size chart

dimensionvalue
hubØ22 × 12, Ø5 bore
fork gap14 mm
pin axis above hub14 mm
pin holesØ3
shaft angleto 30°

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 50: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
cardan-yoke-22-5mmyoke, axis Z, pin axis along X at z = 26STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=cardan-yoke-22-5mm

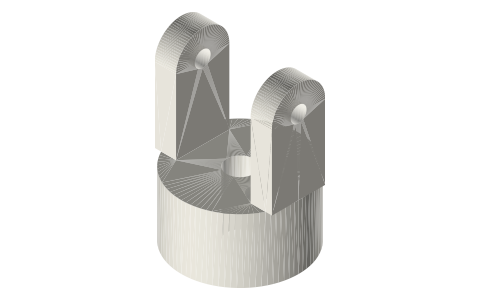

Cardan joint yoke Ø22, Ø5 bore, forks 14 apart (Ø3 cross-pin holes), isometric render of a generated part
Render of cardan-yoke-22-5mm from the free STEP; not to scale.

Fits with

Questions

What is a Cardan joint yoke?

Ø22 × 12 hub with a Ø5 bore and an M3 set-screw hole (Ø2.5 tap drill), carrying two 4 mm fork lugs 14 mm apart; the Ø3 cross-pin hole is 14 mm above the hub, far enough that two yokes clear each other at 30° shaft angle.
