Chicken egg size: length × breadth by egg size, USDA weight classes, 3D egg models
How big is a chicken egg in mm? · Standard part · basis: Peer-reviewed measurement of 2,476 eggs from nine genotypes (length, breadth, weight); USDA size classes by weight per dozen
Also called: egg dimensions mm, large egg size, egg size chart, egg holder 3d print, egg stl
Exact dimensions. True size, with no tolerance added.
- length
- 56.2 mm
- width
- 42.96 mm
- height
- 42.96 mm
Notes
- Measured means: egg-type hens (supermarket eggs) 56.2 × 43.0 mm, 58.3 g; meat-type hens 59.1 × 44.1 mm, 64.6 g; small standard breeds 51.3 × 39.8 mm, 45.4 g. Overall 57.9 × 43.5 mm.
- Breadth / length (shape index) about 0.75; the widest point sits slightly toward the blunt end (modelled with the Hügelschäffer egg curve).
- US sizes are by weight per dozen, not dimensions: Jumbo 30 oz, Extra Large 27, Large 24, Medium 21, Small 18, Peewee 15 (minimums). A US Large egg averages at least 56.7 g, close to the egg-type mean above.
- Holders and incubator trays: size the seat for the breadth (43–44 mm for Large / Extra Large) and let the egg sit blunt end up.
Chicken egg size: length × breadth by egg size, USDA weight classes… size chart
| egg | length (mm) | breadth (mm) | weight (g) |
|---|---|---|---|
| egg-type hens (mean) | 56.2 | 42.96 | 58.34 |
| meat-type hens (mean) | 59.05 | 44.06 | 64.62 |
| standard breeds (mean) | 51.33 | 39.78 | 45.4 |
| all 2,476 eggs | 57.88 | 43.52 | 61.88 |
| USDA Large (min per egg) | None | None | 56.7 |
| USDA Extra Large (min per egg) | None | None | 63.8 |
| USDA Jumbo (min per egg) | None | None | 70.9 |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Turkish Journal of Agriculture - Food Science and Technology | Weight and shape-related traits in eggs from different chicken genotypes | web | Publisher's page; dimensions are facts |
| Eggland's Best | USDA egg size classes (weight per dozen) | web | Publisher's page; dimensions are facts |
Free files
★ Free files 4 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.

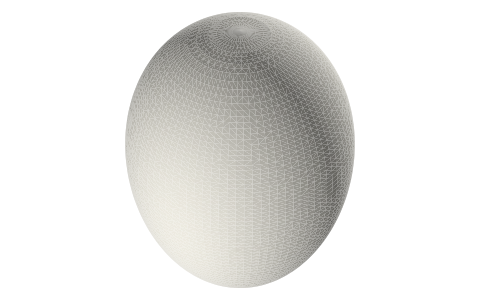

| egg-layer-56.2x43.0 | Chicken egg, egg-type hens mean: 56.2 × 43.0 mm (≈58 g, US Large) | STEP · STL |
| egg-meat-type-59.1x44.1 | Chicken egg, meat-type hens mean: 59.1 × 44.1 mm (≈65 g, US Extra Large) | STEP · STL |
| egg-small-51.3x39.8 | Chicken egg, standard breeds mean: 51.3 × 39.8 mm (≈45 g) | STEP · STL |
| egg-cup-large | Egg cup / tray cell for Large eggs (Ø43 breadth) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=chicken-eggs

Fits with
Questions
How big is a large egg?
About 56–58 mm long and 43 mm across (≈58 g).
How are US egg sizes defined?
By weight per dozen: Large is at least 24 oz a dozen.
