Clearance-seal pistons Ø48.00 × 34 for a bored 2 in spool

What piston fits a 2 inch spool bored to 48 mm? · Hardware · basis: Design values; leakage from plane Poiseuille flow in the clearance (Hagen–Poiseuille)

Also called: clearance seal piston, tri clamp piston, stirling power piston 48 mm

Long Earth Society build part. My clearance-seal pistons. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
2 in table

Notes

  • Ø48.00 × 34, no rings: the ground OD in the honed Ø48.00 bore is the seal. It is driven through a rod and a crosshead guided outside the cylinder, so it carries no side load and keeps its clearance.
  • Gamma piston: the Ø8 rod screws into the boss and is locked with an M8 nut on the boss end.
  • Beta piston: the displacer rod passes through a 6 × 10 × 10 sleeve bushing at the crown (its gland), and the hollow Ø10 piston rod screws into the boss until it bottoms.
  • Leakage loss in the cycle model (charged air, 600 rpm): 0.46 / 1.56 / 3.70 W at 10 / 15 / 20 µm radial clearance on the gamma.

Clearance-seal pistons Ø48.00 × 34 for a bored 2 in spool size chart

partod (mm)length (mm)rod
piston-48-gamma-m848.034.0M8 socket
piston-48-beta-gland48.034.0gland + M10 × 1 socket

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
ODØ48.00 × 34honed bore Ø48.00 (clearance seal)runall
rod socketM8 tapped (Ø6.8) z 8–20Ø8 rod, M8 enddesignedpiston-48-gamma*
gland seatØ10 × 10 at the crown6 × 10 × 10 sleeve bushingpresspiston-48-beta*
tube socketM10 × 1 tapped (Ø9.0) z 14–30hollow rod, M10 × 1 enddesignedpiston-48-beta*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaHagen–Poiseuille equation: annular clearance leakage Q = π D δ³ Δp / 12 μ LwebCC BY-SA 4.0 (text)
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 2 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
piston-48-gamma-m8clearance-seal piston Ø48.00 × 34: crown 6, skirt 3, boss Ø18 with an M8 tapped (Ø6.8) socket z 8–20 for the rodSTEP · STL
piston-48-beta-glandclearance-seal piston Ø48.00 × 34 for a beta: Ø10 × 10 gland seat at the crown (6 × 10 × 10 bushing, the displacer rod's gland), Ø7 on, M10 × 1 tapped (Ø9.0) socket z 14–30 for the hollow rodSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=clearance-seal-pistons-48

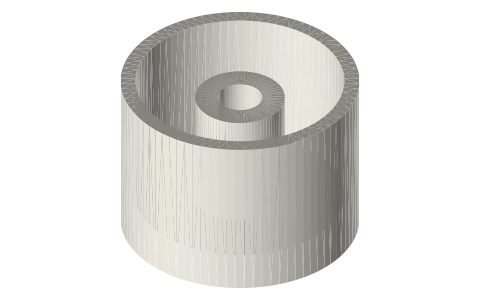

Clearance-seal pistons Ø48.00 × 34 for a bored 2 in spool, isometric render of a generated part
