Clevises with M3 tapped shank: Ø3, Ø5 and Ø6 pins, 5 to 12 mm gaps
What are the dimensions of a small clevis fork for a pushrod? · Hardware · basis: Fork with a cross pin hole at the pin Ø and a gap equal to the link thickness; Ø8 shank boss tapped M3 (Ø2.5 tap drill)
Also called: clevis 3d model, m3 clevis dimensions, rc clevis stl, clevis fork 5mm gap, pushrod clevis
Long Earth Society build part. Serviceable pivots on the LES linkages; a U-joint between engine and alternator when the shafts don't line up. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 5 in table
Notes

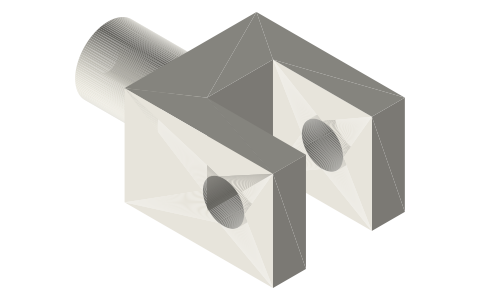

- A fork 18 long × 12 tall with two 4 mm tines; the gap between the tines is the link thickness and the cross hole is the pin Ø, 6 mm in from the open end at mid-height.
- A Ø8 × 10 shank boss on the closed end carries a Ø2.5 hole 10 deep, the M3 tap drill, for a threaded pushrod. Every file is 28 long overall.
- Sizes: Ø3 pin with a 5 or 8 mm gap; Ø5 pin with 8 or 10; Ø6 pin with 12. Width across the tines is gap + 8 (13, 16, 16, 18, 20).
Clevises with M3 tapped shank: Ø3, Ø5 and Ø6 pins, 5 to 12 mm gaps size chart
| file | pin hole Ø | gap | width | length | height | shank |
|---|---|---|---|---|---|---|
| clevis-3-gap5 | 3 | 5 | 13 | 28 | 12 | Ø8, M3 tap Ø2.5 × 10 |
| clevis-3-gap8 | 3 | 8 | 16 | 28 | 12 | Ø8, M3 tap Ø2.5 × 10 |
| clevis-5-gap8 | 5 | 8 | 16 | 28 | 12 | Ø8, M3 tap Ø2.5 × 10 |
| clevis-5-gap10 | 5 | 10 | 18 | 28 | 12 | Ø8, M3 tap Ø2.5 × 10 |
| clevis-6-gap12 | 6 | 12 | 20 | 28 | 12 | Ø8, M3 tap Ø2.5 × 10 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| pin hole | Ø3 / Ø5 / Ø6 | clevis pin (turns in it) | run | clevis-* |
| fork gap | 5 / 8 / 10 / 12 | link of that thickness | run | clevis-* |
| shank thread hole | Ø2.5 | M3 tap drill (pushrod) | designed | clevis-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Wikipedia | Clevis fastener | web | CC BY-SA 4.0 (text) |
| Wikipedia | Universal joint | web | CC BY-SA 4.0 (text) |
| Wikipedia | Rod end bearing | web | CC BY-SA 4.0 (text) |
| McMaster-Carr | Clevis pins (free STEP per part, for your own design use; no redistribution) | STEP, PDF | McMaster-Carr site terms verify |
| McMaster-Carr | Rod ends (free STEP per part, for your own design use; no redistribution) | STEP, PDF | McMaster-Carr site terms verify |
| Long Earth Society | Engine and rig builds | web, video | LES site |
Free files
★ Free files 5 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| clevis-3-gap5 | clevis for a Ø3 pin (Ø3 hole), 5 mm gap for a 5 mm link, M3 tapped shank (Ø2.5) | STEP · STL |
| clevis-3-gap8 | clevis for a Ø3 pin (Ø3 hole), 8 mm gap for a 8 mm link, M3 tapped shank (Ø2.5) | STEP · STL |
| clevis-5-gap8 | clevis for a Ø5 pin (Ø5 hole), 8 mm gap for a 8 mm link, M3 tapped shank (Ø2.5) | STEP · STL |
| clevis-5-gap10 | clevis for a Ø5 pin (Ø5 hole), 10 mm gap for a 10 mm link, M3 tapped shank (Ø2.5) | STEP · STL |
| clevis-6-gap12 | clevis for a Ø6 pin (Ø6 hole), 12 mm gap for a 12 mm link, M3 tapped shank (Ø2.5) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=clevises

How it fits
Connects to
Alternatives
Also needed
You might also need
Questions
What clevis fits a 5 mm thick link?
clevis-3-gap5: 5 mm gap, Ø3 pin hole, 13 × 28 × 12 overall.
What thread is the clevis shank?
M3: a Ø2.5 tap-drill hole 10 deep in a Ø8 boss.
