Bell cranks: 30 × 30 and 20 × 40 mm arms at 90°

How do I make a bell crank? · Hardware · basis: Bell crank lever: output motion = input × (output arm / input arm); 90° between arms; Ø10 pivot pocket for a 623 bearing

Also called: bell crank 3d print, bell crank stl, 90 degree lever

Long Earth Society build part. Beta-engine linkage lever for the LES rigs. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
2 in table

Notes

  • Turns a push or pull through 90°. The 30 × 30 crank keeps the same travel; the 20 × 40 doubles it (or halves it, driven the other way).
  • Pivot is a Ø10 pocket for a 623 bearing (OD 10); arm ends have Ø3 holes for pins and links.
  • Used in the beta Stirling bell-crank drive to phase the displacer and piston.

Bell cranks: 30 × 30 and 20 × 40 mm arms at 90° size chart

armsangleratiopivot
30 × 30 mm90°1:1Ø10 (623)
20 × 40 mm90°1:2Ø10 (623)

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
pivot pocketØ10623 bearing OD 10pressall
arm holesØ3Ø3 pins (turn in them)runall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaBellcrankwebCC BY-SA 4.0 (text)
Long Earth SocietyEngine and rig builds on extrusion framesweb, videoLES site

Free files

★ Free files 2 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
bell-crank-30x30-90bell crank, 30 × 30 mm arms at 90°, Ø10 pocket for a 623 bearing pivot, Ø3 arm holesSTEP · STL
bell-crank-20x40-90bell crank, 20 × 40 mm arms (2:1) at 90°, Ø10 pivot pocket, Ø3 arm holesSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=bell-cranks

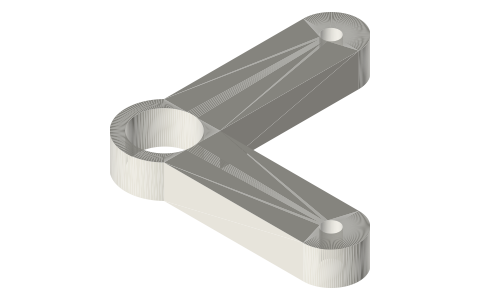

Bell cranks: 30 × 30 and 20 × 40 mm arms at 90°, isometric render of a generated part
Render of bell-crank-30x30-90 from the free STEP; not to scale.

You might also need

Questions

What does a bell crank do?

It changes the direction of a push or pull, usually by 90°, and scales the travel by the ratio of its arms.
